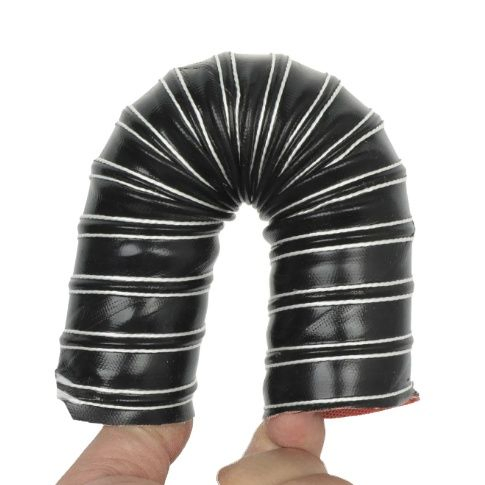

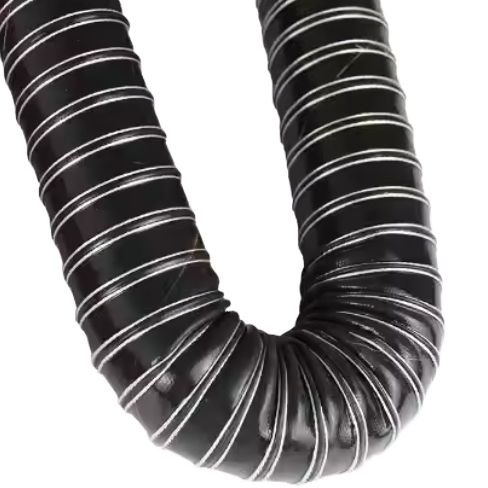

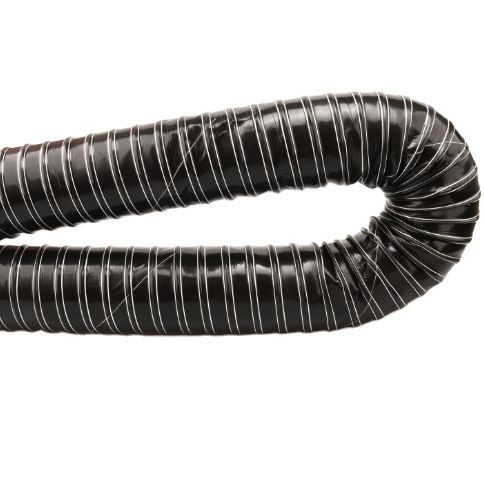

Automotive Silicone Flexible Brake Cooling Air Ducting Induction Intake Pipe Hose

1 / 5

Automotive Silicone Flexible Brake Cooling Air Ducting Induction Intake Pipe Hose

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📊 Basic Information

Model NO.

hose

Material

Silicone

Kind

Thermosetting Plastics Pipe

Water Absorption

＜0.01%

Tensile Strength

3.46MPa

Product Name

Vulcanized Duct Red

Temperature

-60 to +300 Degrees Celsius

Size

19mm to 400mm

Length

4 Meters/Roll

Reinforcement

High Tensile Steel Wire & Fiberglass Cord

🔧 Product Description

High-Temperature Vulcanized Silicone Ventilation Hose

📋 Specifications

Inner Diameter: 25mm-400mm
Length: 4 meters/piece

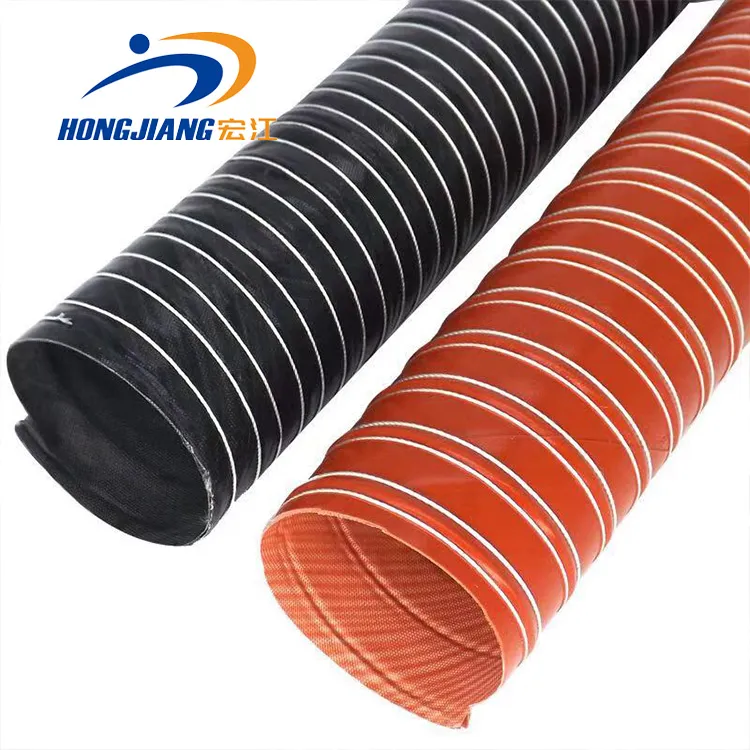

Color: Red/Black

⚡ Technical Parameters

Working Pressure: 450mmWG
Working Air Velocity: 38 m/s
Temperature Range: -60ºC to +300ºC (Short-term 350ºC)
Max Pressure Resistance: 5000Pa

🌟 Product Features

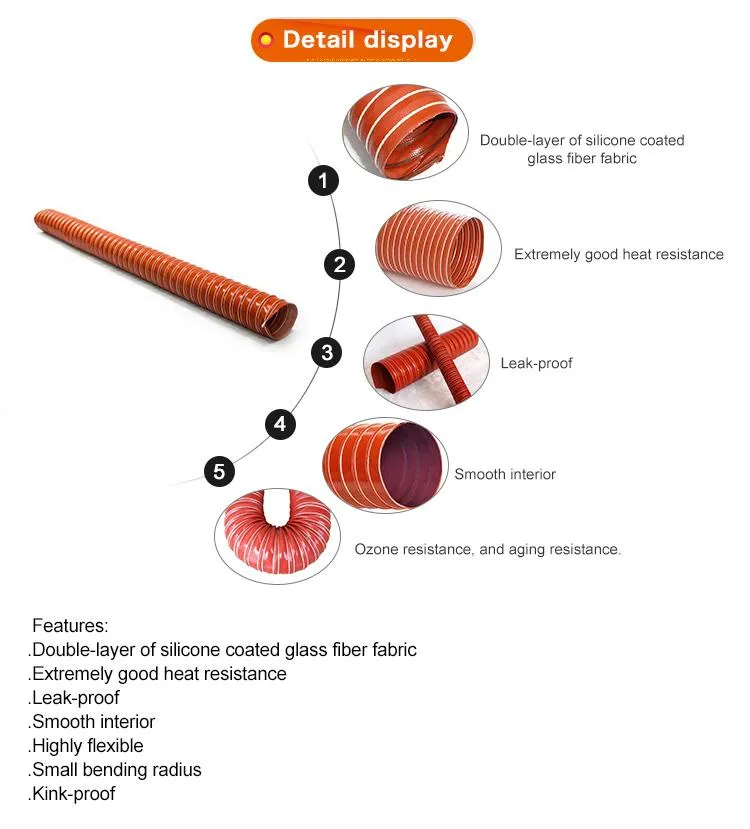

Material: Double-layer fiberglass with high-strength elastic steel wire and silicone rubber.
Durability: Withstands continuous 300ºC for 12 hours; no leakage under 0.6MPA pressure.

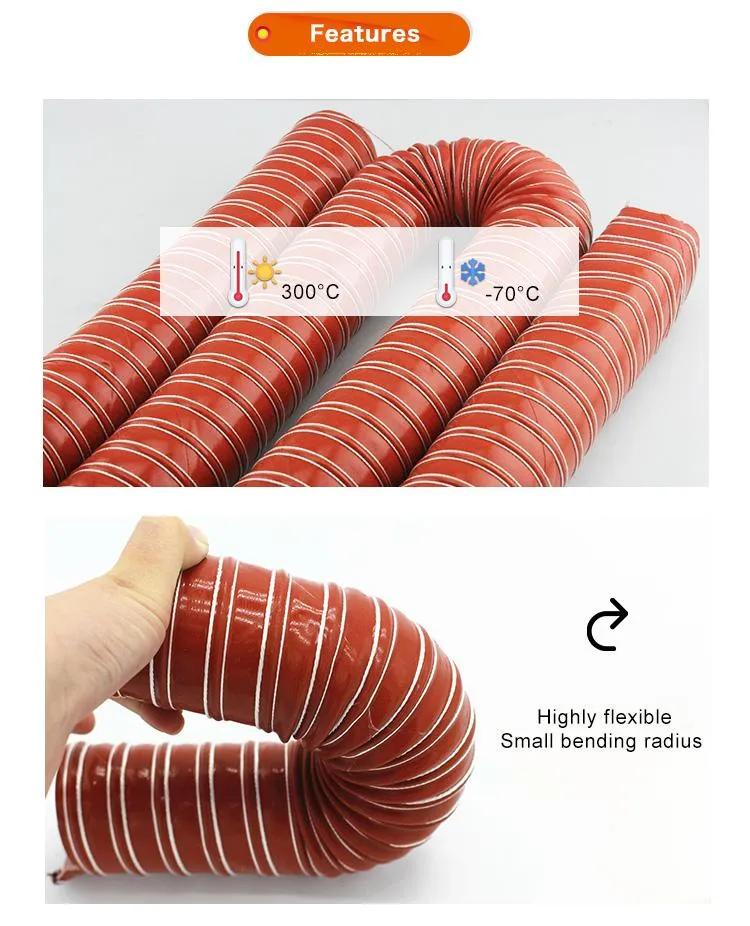

Craftsmanship: High-temperature vulcanization, smooth inner wall, and extremely flexible (bending radius ≈ diameter).
Cycle Life: Can withstand 10,000 cycles of bending and stretching without damage.

📐 Detailed Parameters

Construction	Glass Fiber Cord + Silicon Coated + Glass Fabric + Steel Wire
Inner Diameter	40mm-300mm (1.5"-12")
Thickness	0.6mm
Helix Spacing	15mm, 16mm, 18mm, 19mm (Customizable)
Fire Resistance	Non-Flammable
Air Velocity	30m/s

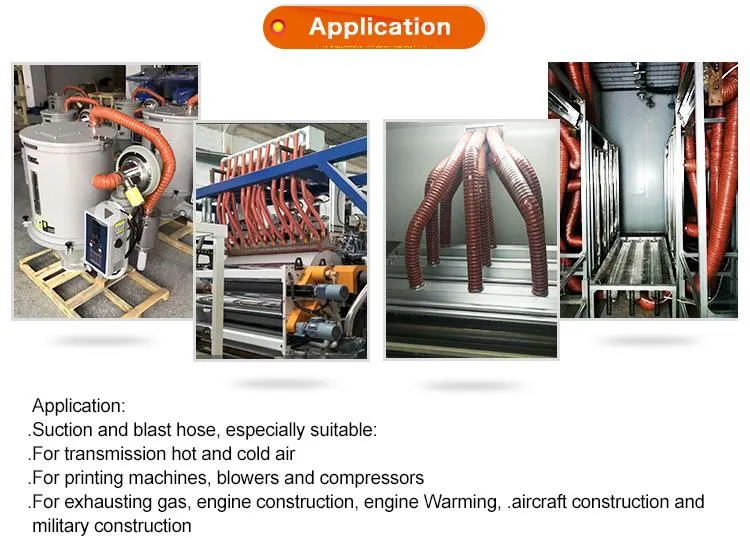

🚀 Applications

Industrial Use: Heat and cold air guidance, mechanical fan exhaust.
Plastic Industry: Granular material drying and dust removal systems.
Exhaust Equipment: Heaters, blower furnaces, and welding exhaust.
Specialized: Engine structures, chemical fiber devices, aerospace, and military equipment.

📦 Packaging & Shipping

❓ Frequently Asked Questions

1. What is the maximum temperature this hose can handle? The hose operates continuously from -60ºC to +300ºC, with short-term resistance up to +350ºC.

2. Is the hose flexible enough for tight spaces? Yes, it is extremely flexible with a bending radius approximately equal to its own diameter, making it ideal for complex engine and machinery layouts.

3. What materials is the hose made of? It features a double-layer fiberglass wall coated with silicone rubber, reinforced with high-tensile steel wire and nylon thread.

4. Can I customize the diameter or length? We offer inner diameters ranging from 19mm to 400mm. The standard length is 4 meters per roll, but specific sizes can be discussed.

5. Is this hose flame retardant? Yes, the silicone-coated fiberglass construction provides excellent fire resistance and is classified as non-flammable.

6. How durable is the hose under pressure? It has a maximum pressure resistance of 5000Pa and can withstand 10,000 cycles of bending and stretching without damage.
