High Pressure Flexible Hydraulic Rubber Transmission Oil Cooler Hose

1 / 5

High Pressure Flexible Hydraulic Rubber Transmission Oil Cooler Hose

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.:TB-RH-OC

Use:Oils, Water, etc.

Working Temp:-40 to 160°C

Cover:Heat & Ozone Resistant Synthetic Rubber

Transport Package:Roll

Specification:3/16, 7/32, 3/8 inch

HS Code:4009210000

Production Capacity:100,000m/Week

High Pressure Flexible Hydraulic Rubber Transmission Oil Cooler Hose

🚀 Applications

Specially designed for transporting oil to automatic transmission fluids in various automotive and industrial systems.

🛠️ Construction

Tube: Transmission oil-resistant with high performance formula (AEM)
Reinforcement: High tensile braided fiber
Cover: Heat and ozone-resistant with high performance synthetic rubber (AEM)
Temperature Range: -40ºC to +160ºC (-40 ºF to +320 ºF)
Standard: SAE J1532

📊 Sizes and Performance Parameters

NO.	I.D (Internal Diameter)			O.D (Outer Diameter)			W.P (Working Pressure)		B.P (Burst Pressure)
NO.	inch	mm	Tol (mm)	inch	mm	Tol (mm)	Bar	PSI	Bar	PSI
1	3/16	5	±0.2	7/16	11	±0.3	56	800	280	4000
2	7/32	5.5	±0.2	29/64	11.5	±0.3	56	800	280	4000
3	3/8	9.5	±0.4	11/16	17.5	±0.5	60	870	240	3480

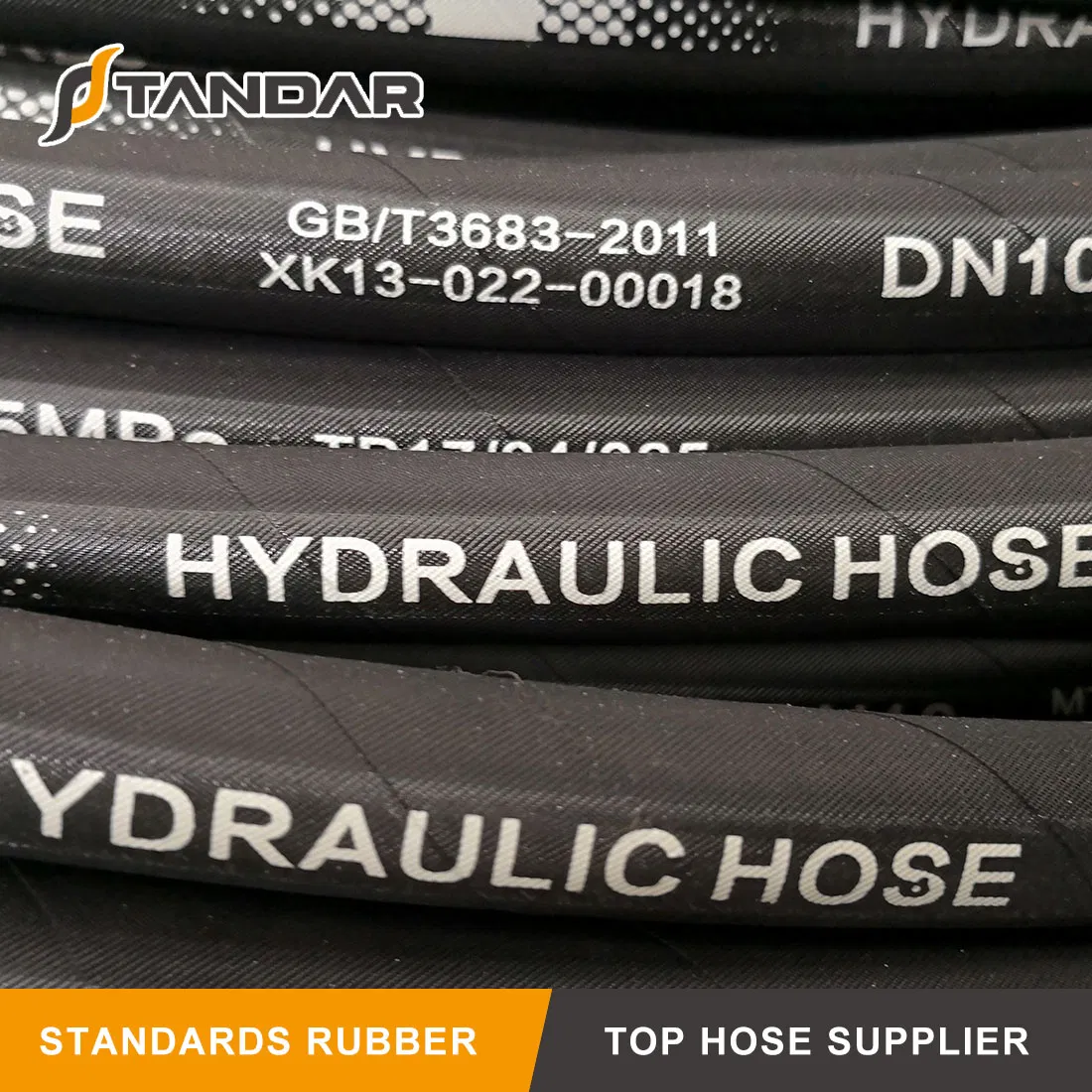

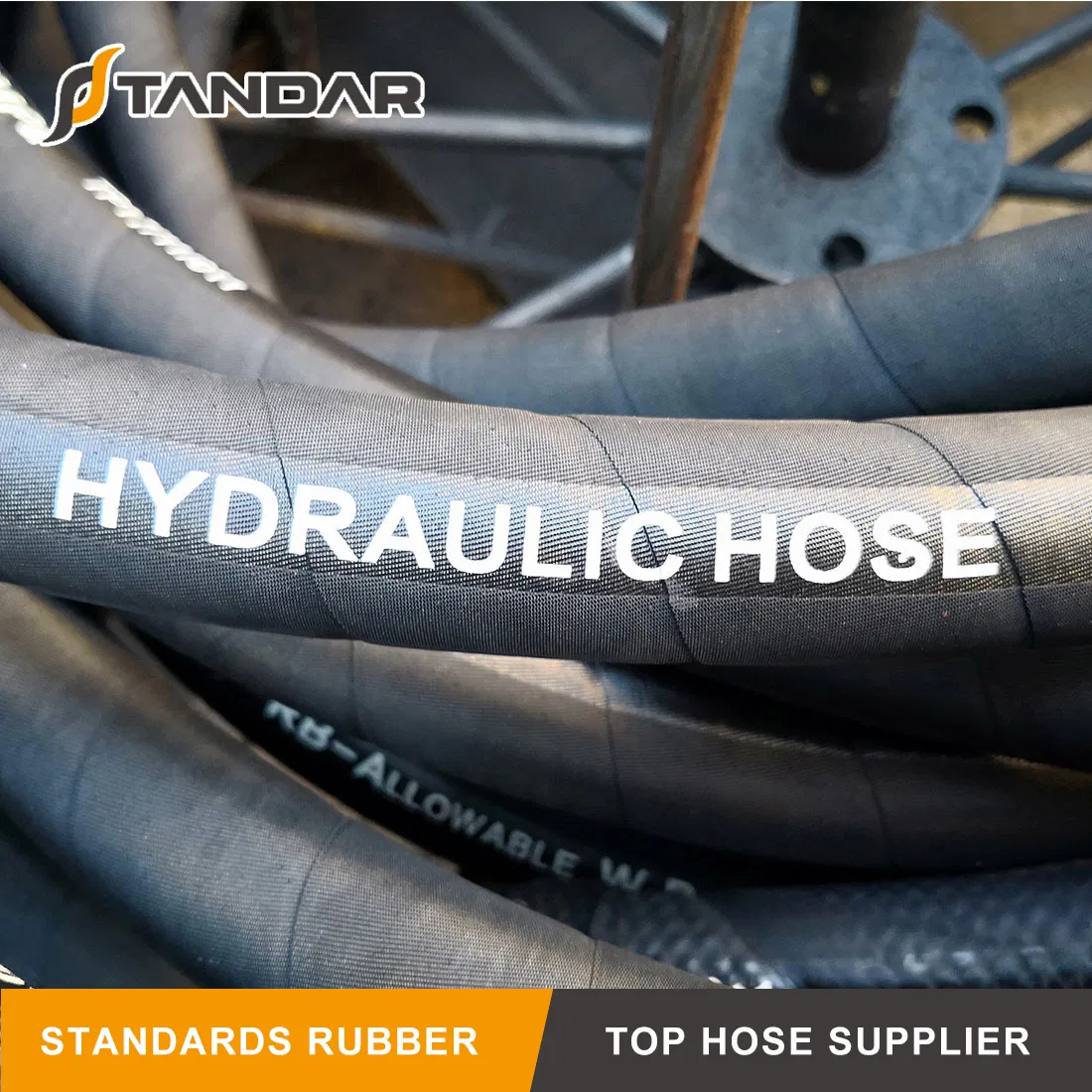

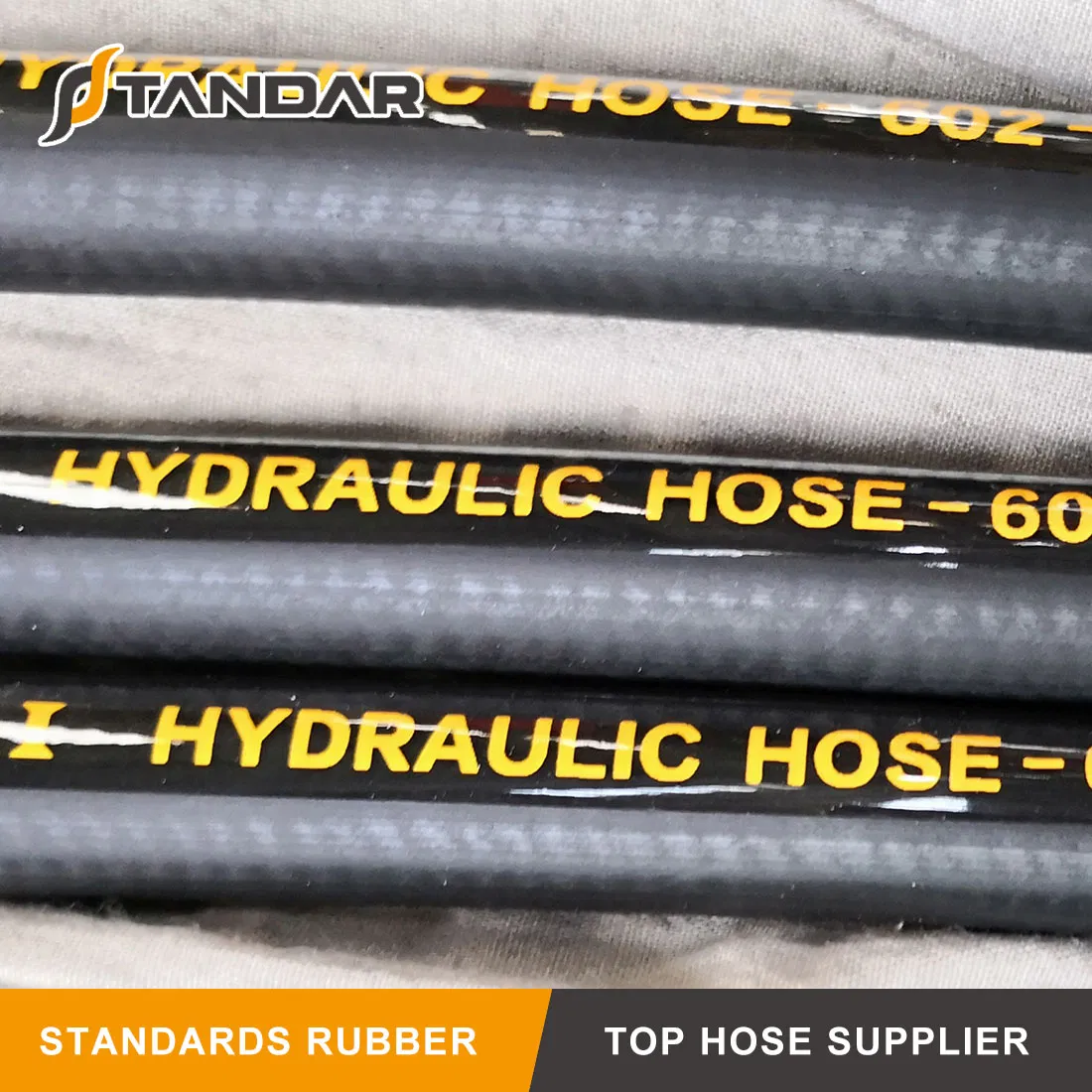

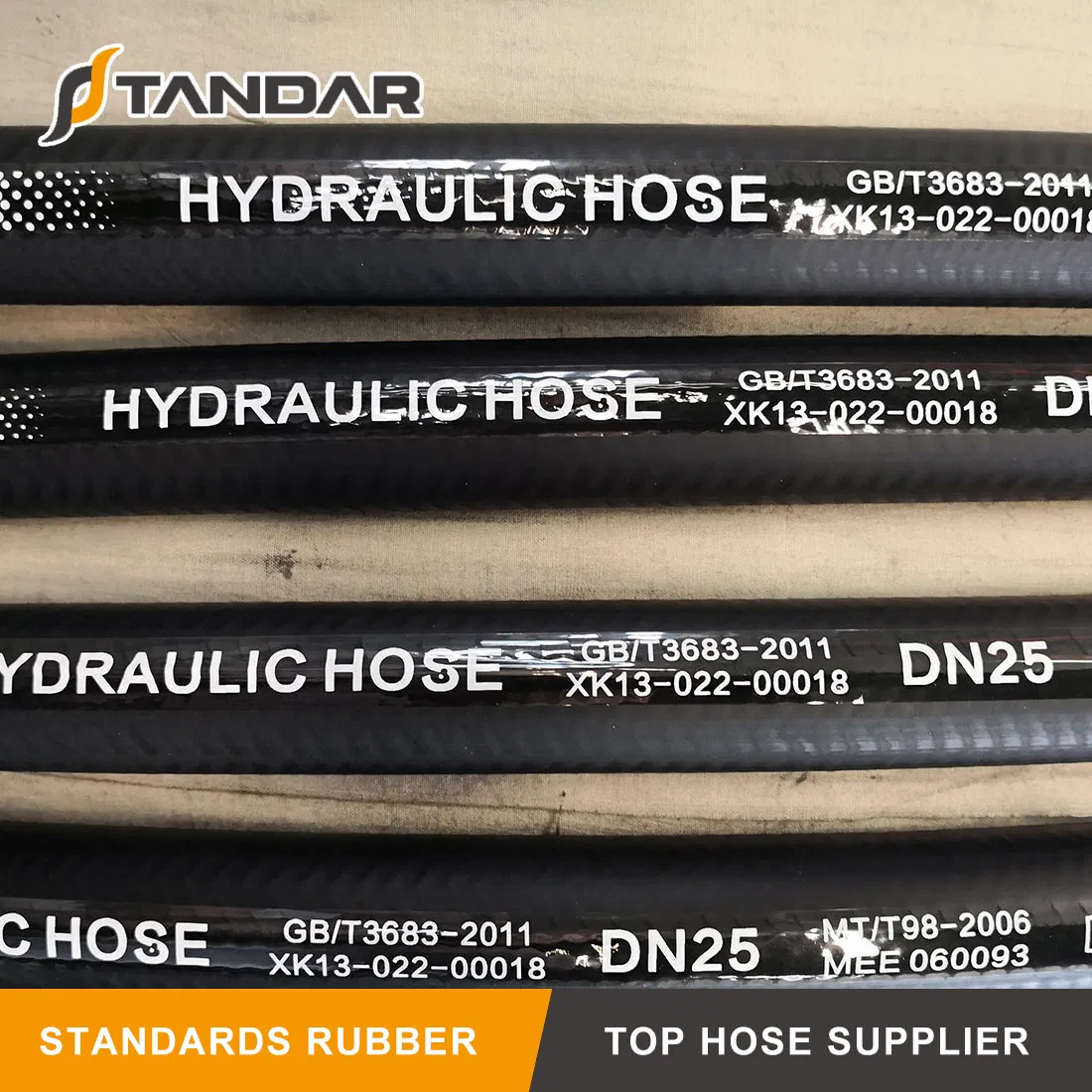

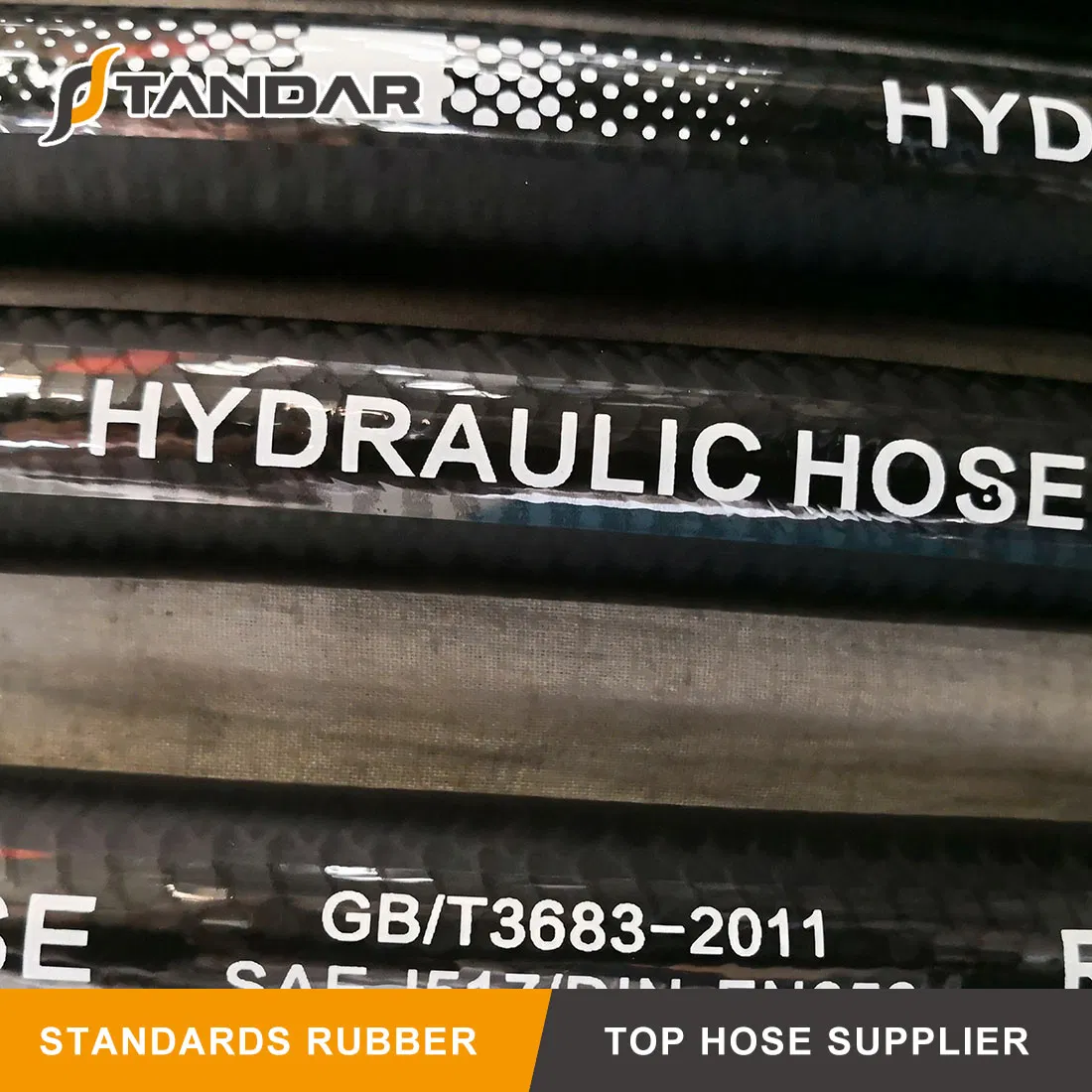

Product Gallery

Professional Services

📐 Design & Sampling

Expert support for custom hydraulic and industrial hose development, ensuring products meet specific technical requirements before mass production.

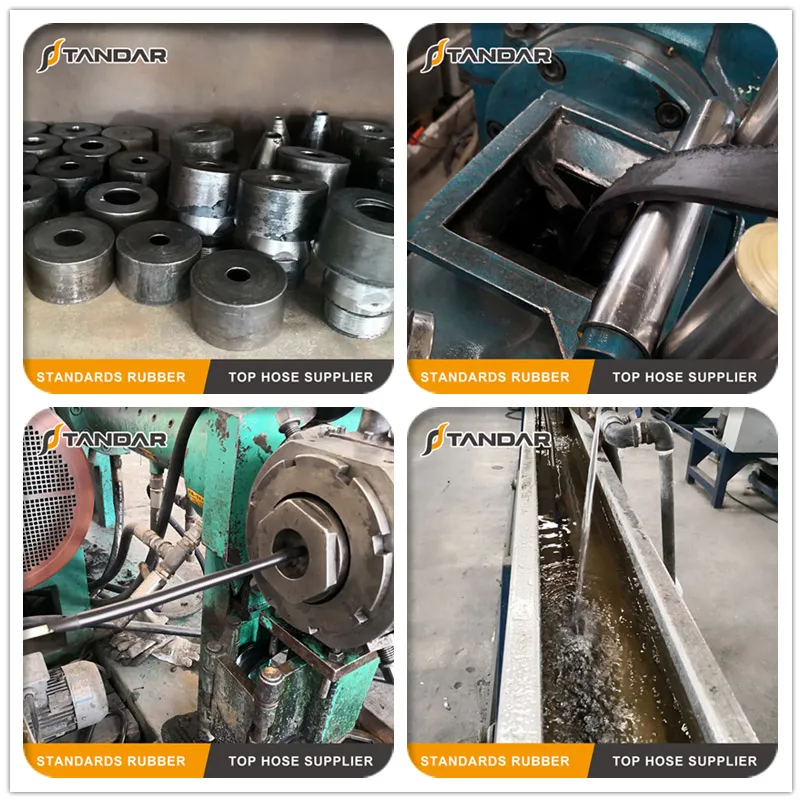

🔍 Quality Control

Thorough inspections throughout the manufacturing process, working closely with raw material suppliers to maintain high standards.

📜 Certification

Products can be tested and certified to comply with international standards such as ISO, FDA, CCS, and SGS.

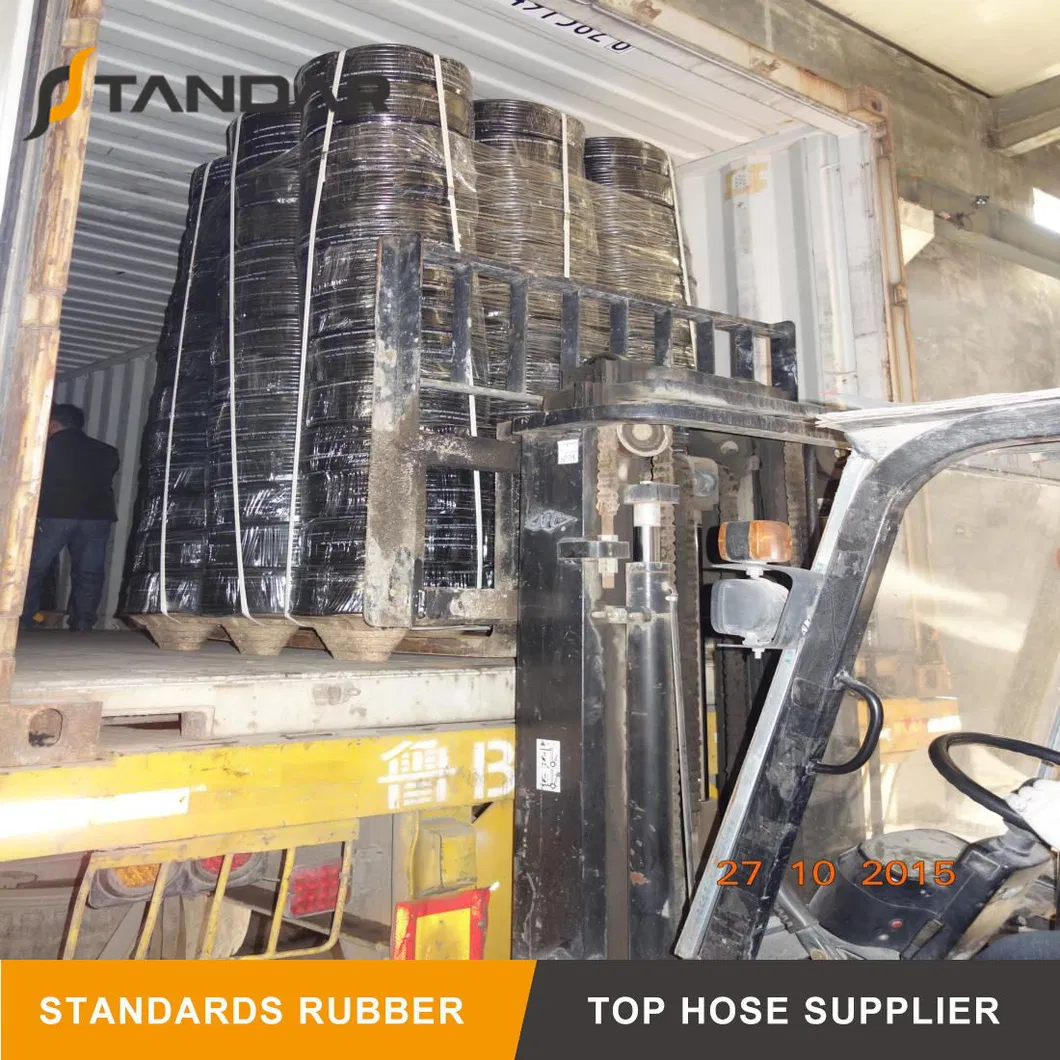

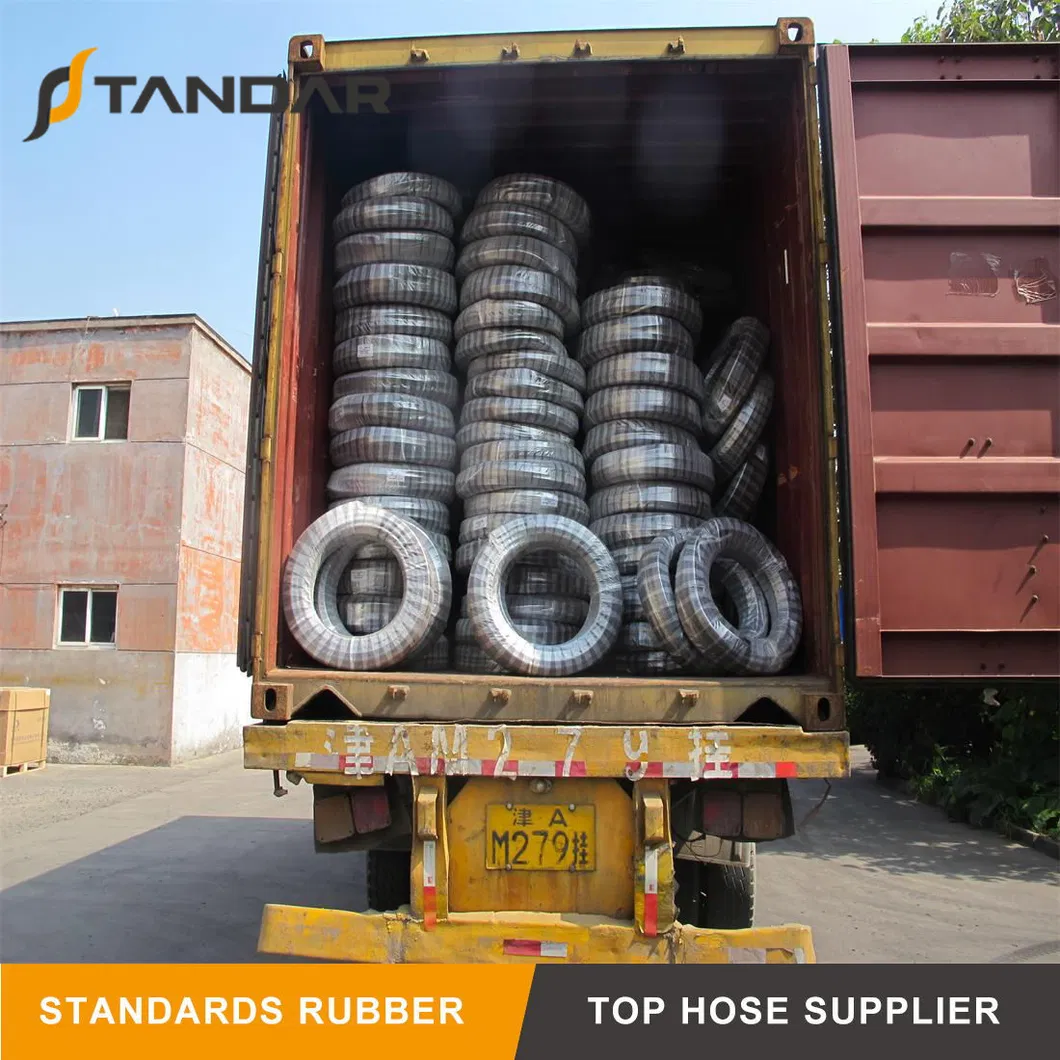

📦 Logistics & Delivery

Comprehensive packaging and efficient delivery services from concept to distribution hub.

Frequently Asked Questions

Q1: What is the maximum operating temperature for this oil cooler hose? A: The hose is designed to withstand temperatures ranging from -40ºC to +160ºC (-40 ºF to +320 ºF).

Q2: Which international standards does this hose comply with? A: Our transmission oil cooler hoses are manufactured according to the SAE J1532 standard.

Q3: What materials are used in the construction of the hose? A: The inner tube and cover are made of oil, heat, and ozone-resistant AEM synthetic rubber, reinforced with high-tensile braided fiber.

Q4: Can you provide customized sizes? A: Yes, we offer professional design and sampling services for custom hydraulic and industrial hoses based on your specific requirements.

Q5: What is the production capacity for bulk orders? A: We have a high production capacity of approximately 100,000 meters per week to ensure timely delivery.
