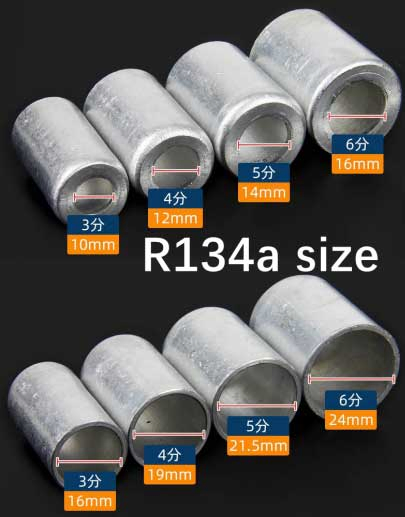

We offer a large range of hydraulic hose & fittings suitable for use on various applications across multiple industries. Our hydraulic hose range includes 1SC, 2SC, 100 R1-R17, 4SP, 4SH, 1SN, 2SN, 1-3TE & suction & delivery hose, along with compatible hose inserts and ferrules.
Above specifications are for reference; we can produce the OE size as per your request.

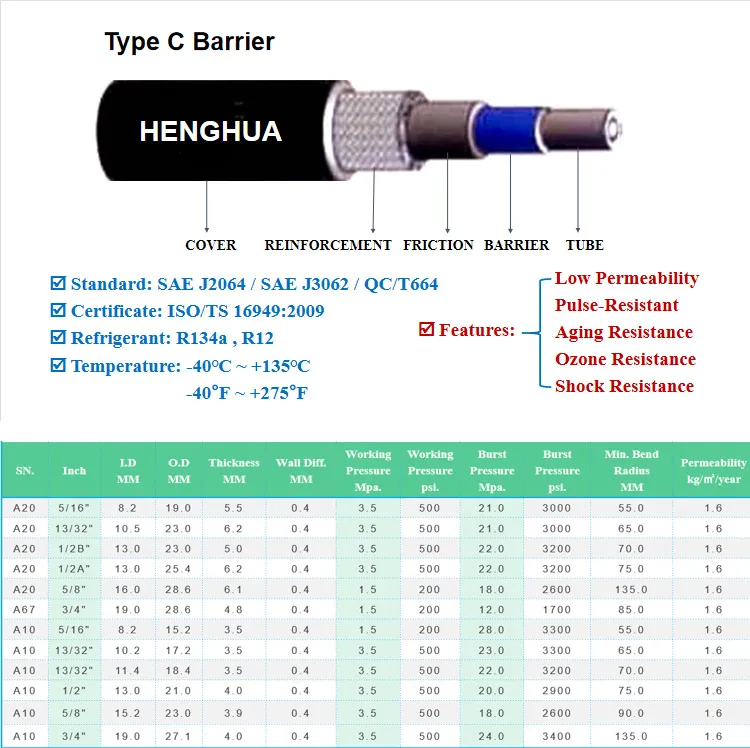

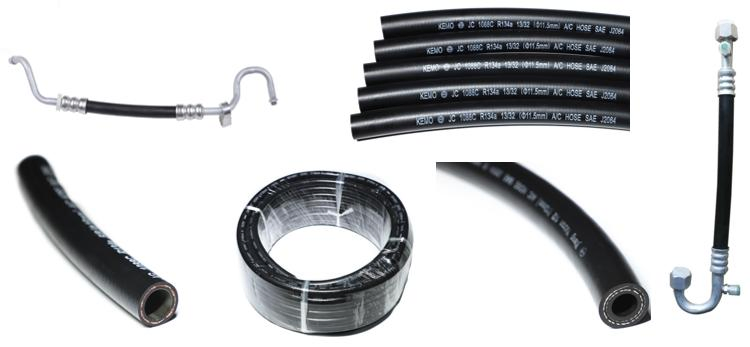

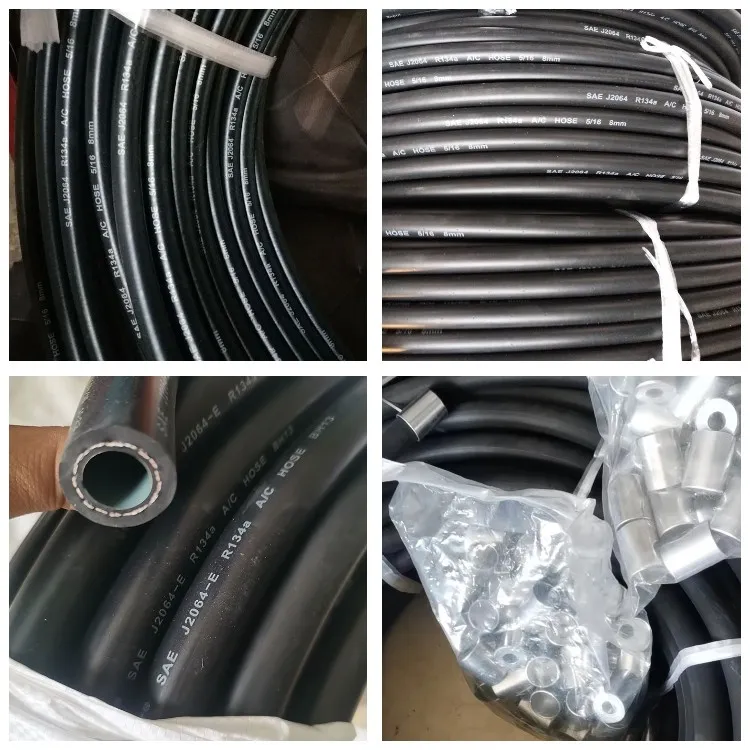

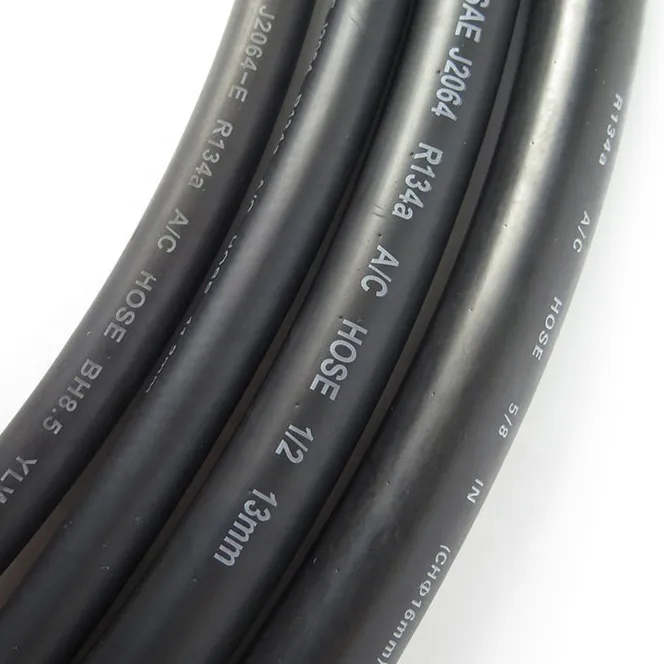

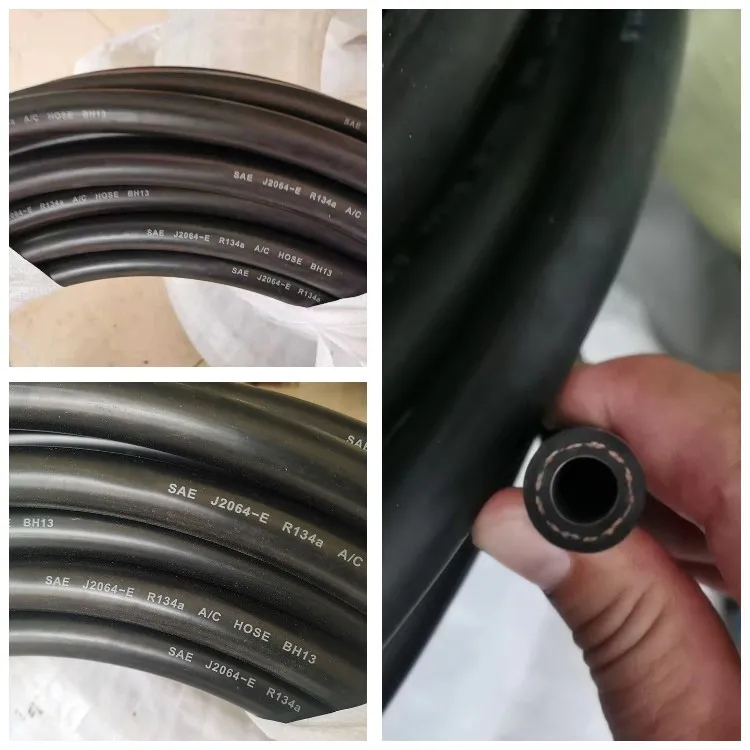

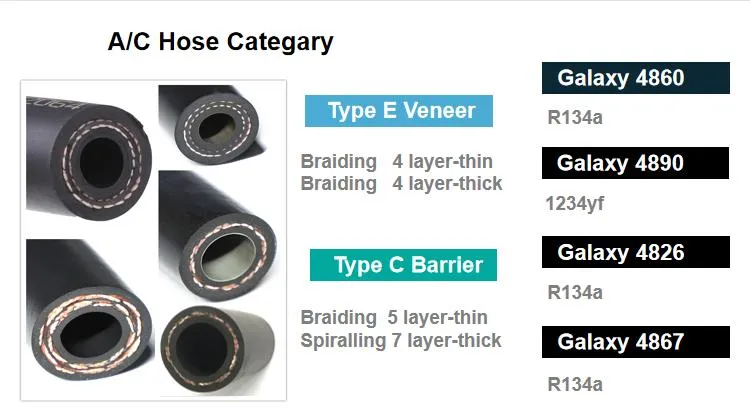

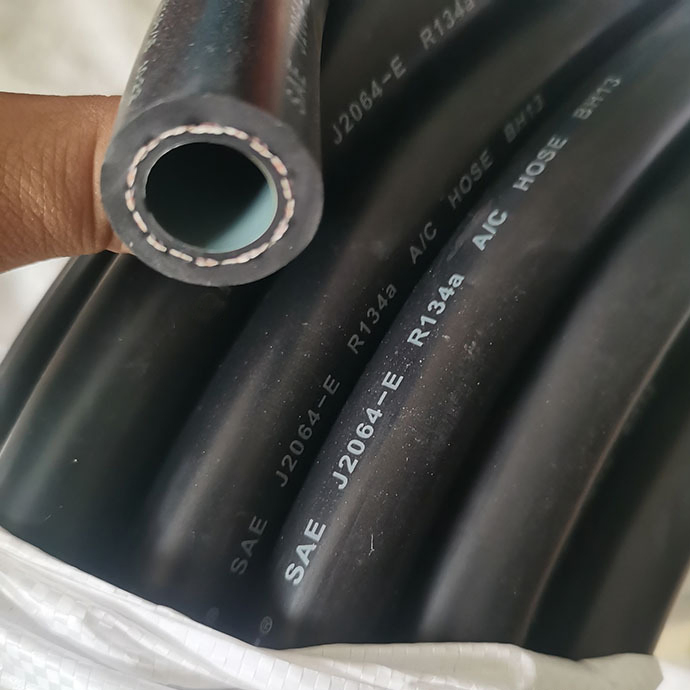

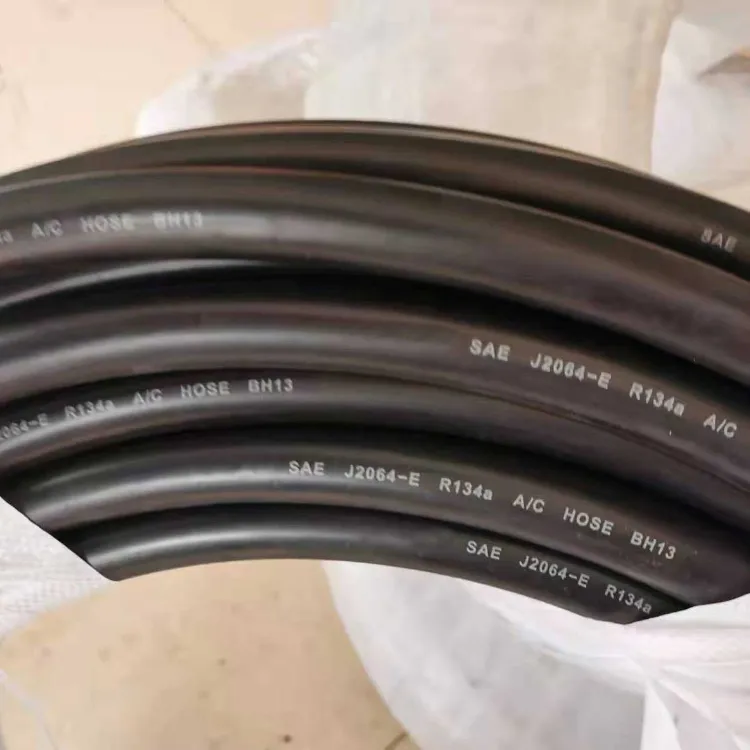

Application: Applicable for Car, truck and passenger coach air conditioner systems to transfer environmentally friendly R134a and R12 refrigerant. SAE J2064 Type C #6, #8, #10, #12 Auto R134a refrigerant air conditioning line assembly with PA barrier thick / thin wall.
| SIZE (inch) | IDxOD (mm) | Min.B.Rad (mm) | W.P (MPa) | B.P (MPa) | Weight (KG/M) | Length (M/ROLL) |
|---|---|---|---|---|---|---|
| 5/16" | 8.0x19.0 | 95 | 3.5 | 18 | 0.21 | 50 |
| 13/32" | 10.2x22.3 | 110 | 3.5 | 18 | 0.29 | 50 |
| 1/2" | 13.0x23.3 | 120 | 3.5 | 14 | 0.36 | 50 |
| 5/8" | 16.0x26.3 | 130 | 3.5 | 14 | 0.44 | 50 |
| Reinforcement | Product Specification |
|---|---|

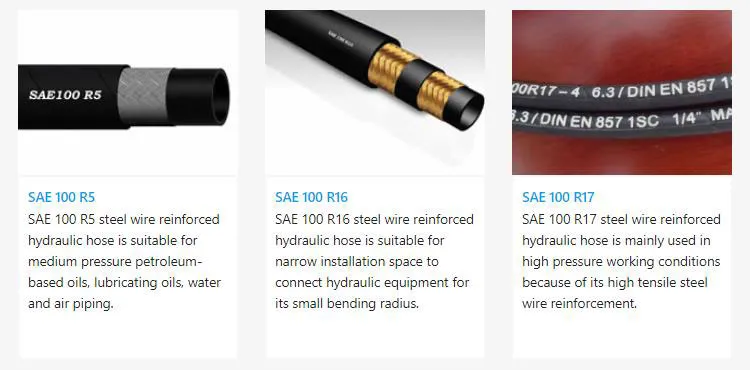

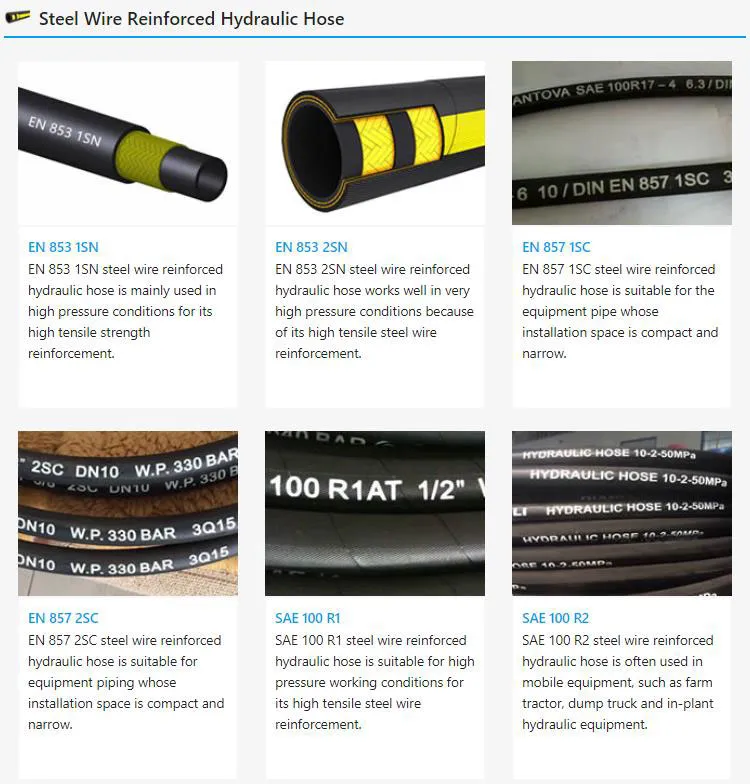

| One steel wire braided | SAE R1AT/DIN 1SN, DIN 1SC, SAE R5, SAE 100R17 |
| Two steel wire braided | SAE R2AT/DIN 2SN, DIN 2SC |
| Four steel wire spiral | SAE R9AT, SAE R12, DIN 4SP, DIN 4SH |
| High flexibility nylon | SAE R7, SAE R8 |

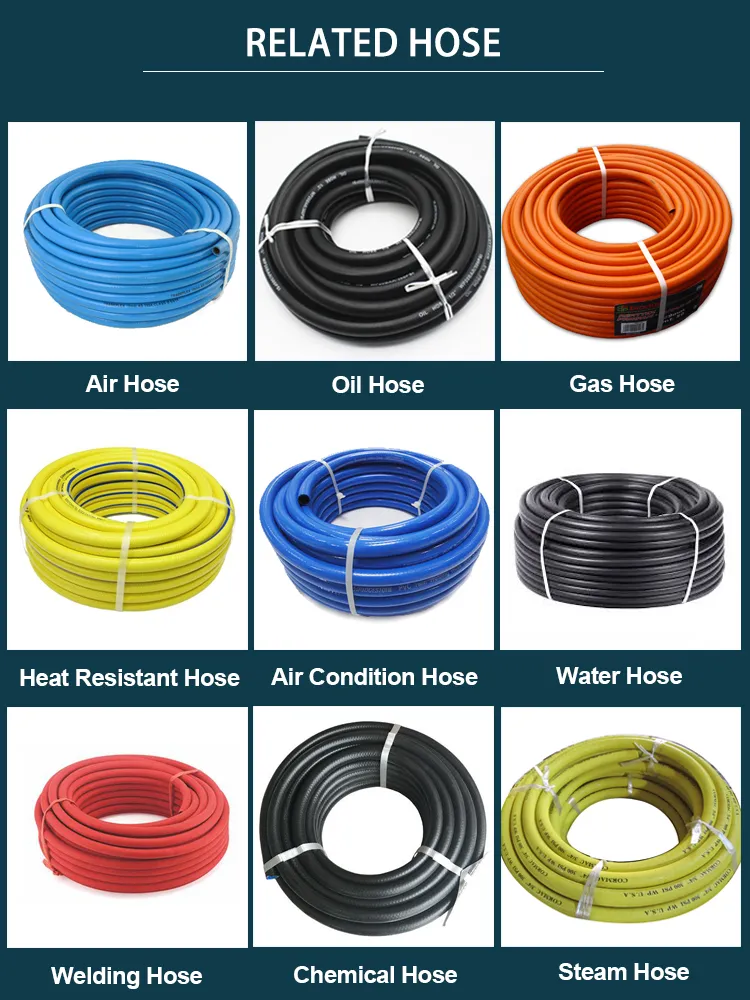

| Industrial Series | Steam, Water/Air, Fuel/Oil, Washer hose |
