■ Basic Info.
Color
Blue Yellow Green Black Red
Size
1/4, 5/16, 3/8, 1/2, 5/8, 3/4, 1, 1/1/4, 1/1/2, 2
Working Pressure
50-500 Bar
Type
R1. R2. R3. R4. R5. R6. R7. R8. R9. R14. R16. R17
Tube
Oil Resistant Synthetic Rubber
Reinforcement
High Tensile Steel Wire Braid
Cover
Abrasion and Weather Resistant Synthetic Rubber
Transport Package
PP Woven Bag or as Customized
Specification
5-51mm, 3/16'' - 2''
Capacity
700,000 Meters Per Month
■ Product Description
1. SAE 100 R1 AT HT/ DIN EN 853 1SN HT
Tube: High temperature and oil resistant synthetic rubber
Reinforcement: One high tensile steel wire braid
Cover: Abrasion, high temperature, oil and weather resistant synthetic rubber
Application: Industrial, Agriculture, Low - High pressure hydraulic system
Temperature range: -40ºC to +135ºC
2. SAE 100 R2 AT / DIN EN 853 2SN HT
Tube: High temperature and oil resistant synthetic rubber
Reinforcement: Two high tensile steel wire braid
Cover: Abrasion, high temperature, oil and weather resistant synthetic rubber
Application: Industrial, Agriculture, Low - High pressure hydraulic system
Temperature range: -40ºC to +135ºC
3. DIN EN 856 4SP / SH
Tube: Oil resistant synthetic rubber
Reinforcement: Four high tensile steel wire spiral
Cover: Abrasion, weather resistant synthetic rubber
Application: High pressure hydraulic system
Temperature range: -40ºC to +121ºC

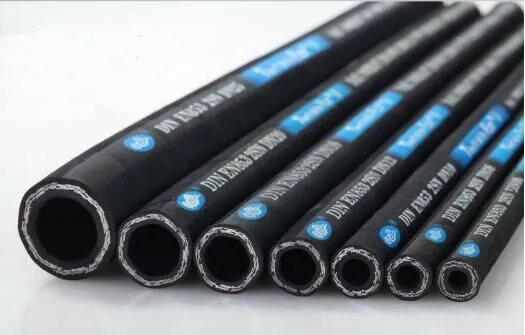

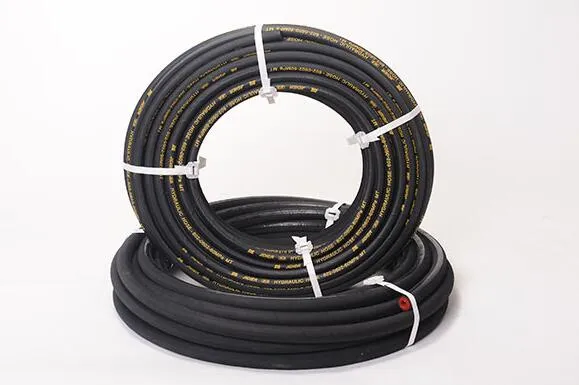

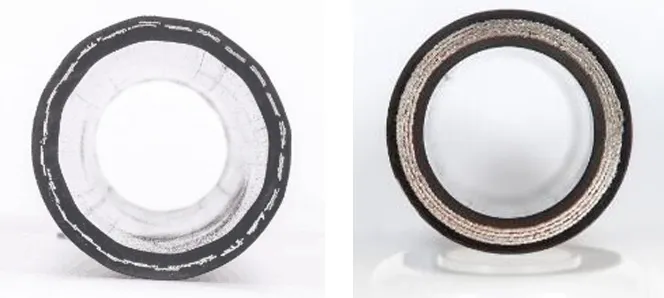

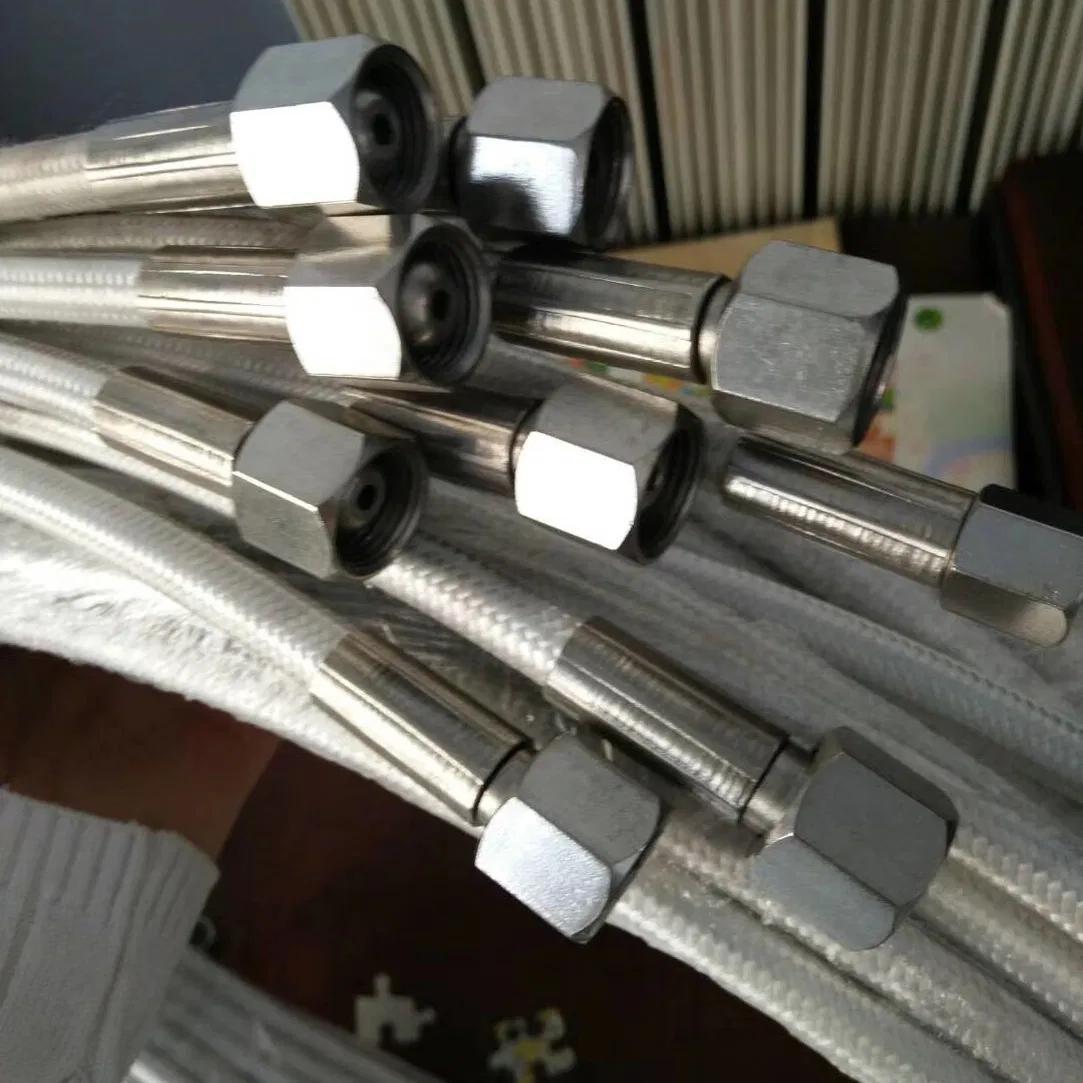

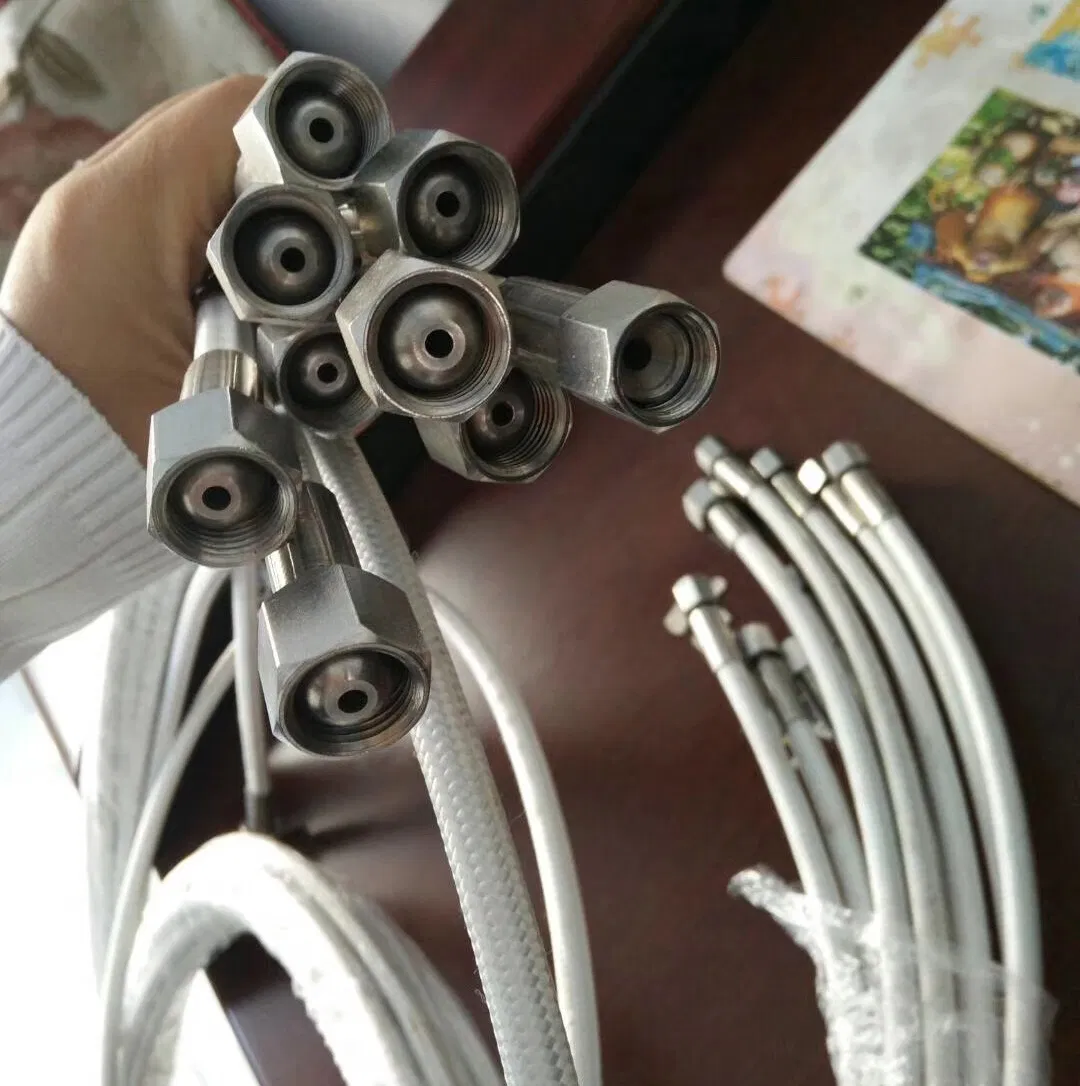

■ Product Display
■ Technical Data Sheets
1. SAE 100 R1 AT HT/ DIN EN 853 1SN HT
| DN | Hose I.D | Wire O.D | Hose O.D | Working Pressure | Burst Pressure | Min Bend | Weight | Length |
| inch | mm | mm | mm | MPa | psi | MPa | psi | mm | kg/m | meters |
| 5 | 3/16 | 4.8 | 9.5 | 11.8 | 25.0 | 3630 | 100.0 | 14280 | 89 | 0.19 | 50/100 |
| 6 | 1/4 | 6.4 | 11.1 | 13.4 | 22.5 | 3270 | 90.0 | 12840 | 102 | 0.21 | 50/100 |
| 10 | 3/8 | 9.5 | 15.1 | 17.4 | 18.0 | 2615 | 72.0 | 10280 | 127 | 0.33 | 50/100 |
| 13 | 1/2 | 12.7 | 18.3 | 20.6 | 16.0 | 2320 | 64.0 | 9180 | 178 | 0.41 | 50/100 |
| 19 | 3/4 | 19.0 | 25.4 | 27.7 | 10.5 | 1530 | 42.0 | 6000 | 241 | 0.58 | 50/100 |
| 25 | 1 | 25.4 | 33.3 | 35.6 | 8.8 | 1280 | 35.0 | 5020 | 305 | 0.88 | 50 |
| 51 | 2 | 50.8 | 60.2 | 64.0 | 4.0 | 580 | 16.0 | 2280 | 635 | 1.97 | 20-40 |
2. SAE 100 R2 AT / DIN EN 853 2SN HT
| DN | Hose I.D | Wire O.D | Hose O.D | Working Pressure | Burst Pressure | Min Bend | Weight | Length |
| inch | mm | mm | mm | MPa | psi | MPa | psi | mm | kg/m | meters |
| 6 | 1/4 | 6.4 | 12.7 | 15.0 | 40.0 | 5800 | 160 | 22840 | 102 | 0.36 | 50/100 |
| 13 | 1/2 | 12.7 | 19.8 | 22.2 | 27.6 | 4000 | 110 | 15720 | 178 | 0.68 | 50/100 |
| 19 | 3/4 | 19.0 | 27 | 29.3 | 21.5 | 3120 | 85 | 12280 | 241 | 0.94 | 50/100 |
| 25 | 1 | 25.4 | 34.9 | 38.0 | 16.5 | 2400 | 65 | 9420 | 305 | 1.35 | 50 |
■ Our Products Range
Hydraulic Hose: Steel wire braided, Steel wire spiral, Textile braided hose
Industrial Hose: Air/Water/Oil/Gas/LPG, Welding, Steam, Sandblast, Large diameter hoses
Automotive Hose: Air brake, Power steering, Fuel oil hose
Other: PVC Hose, Hose Fittings, Couplings, Ferrules, and Hose Machines
■ Application Field
Engineering machinery, port machinery, aerospace, car manufacture, machine tool manufacturing, wind power, shipbuilding, petrochemical, agricultural machinery, mining, construction, special vehicles, and hydraulic systems.

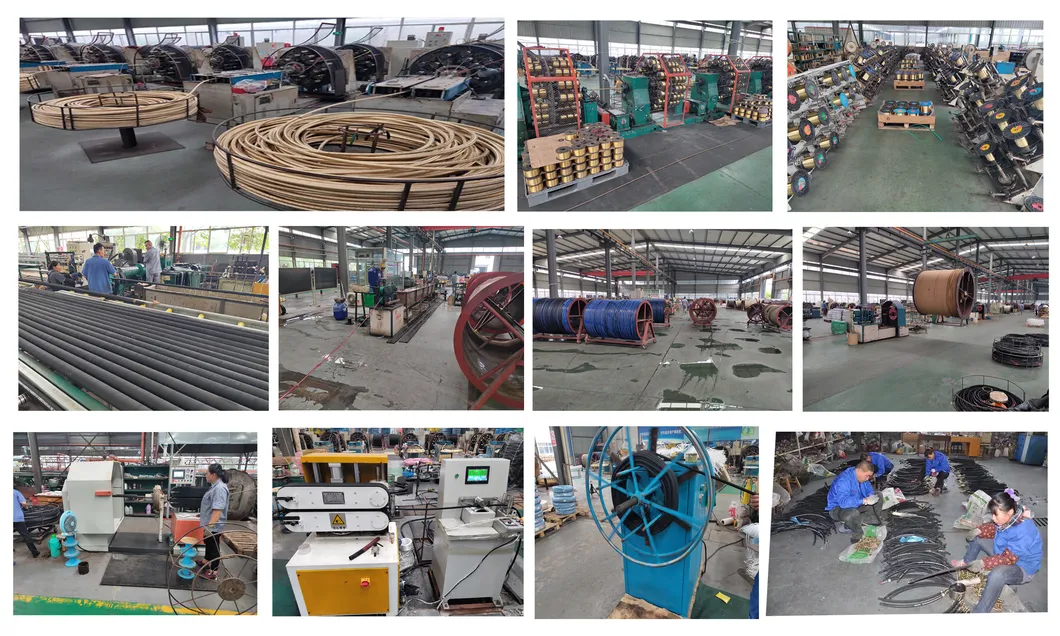

■ Workshop Show
? Frequently Asked Questions
Do you produce smooth or cloth wrapped cover?
Yes, we can produce both covers depending on the customer's specific request.
Can you produce product with my own brand?
Yes, OEM or ODM services are warmly welcome. We aim for mutual benefit through professional cooperation.
Could we get free samples?
Yes, we can provide free samples for your quality evaluation.
Does your product have different color hose?
Yes, we currently provide a variety of colors including black, grey, red, blue, and yellow.
Could you crimp hose?
Yes, we can provide complete crimped hose assemblies for our customers.
How long does my order take to be delivered?
It usually takes 5 to 30 days, depending on the quantity of your order and current stock levels.
