3an PTFE Hose with Stainless Steel Braided Compatible with Brake, Clutch, Hydraulic

1 / 5

3an PTFE Hose with Stainless Steel Braided Compatible with Brake, Clutch, Hydraulic

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📋

Product Overview

Model NO.

ptfe brake hose

Tensile Strength

20~45 MPa

Working Temp

-70 ~+260 Celsius Degree

Usage

Chemical, Mechanical, Automotive, Food, Medical

Braided

Stainless Steel

Advantages

Less Residue Fluid

Factory Certs

ISO 9001, ISO 13485

Feature

Non-Stick, Non-Toxic

MOQ

50 Meters

Production Time

15 Days

🔍

Product Description

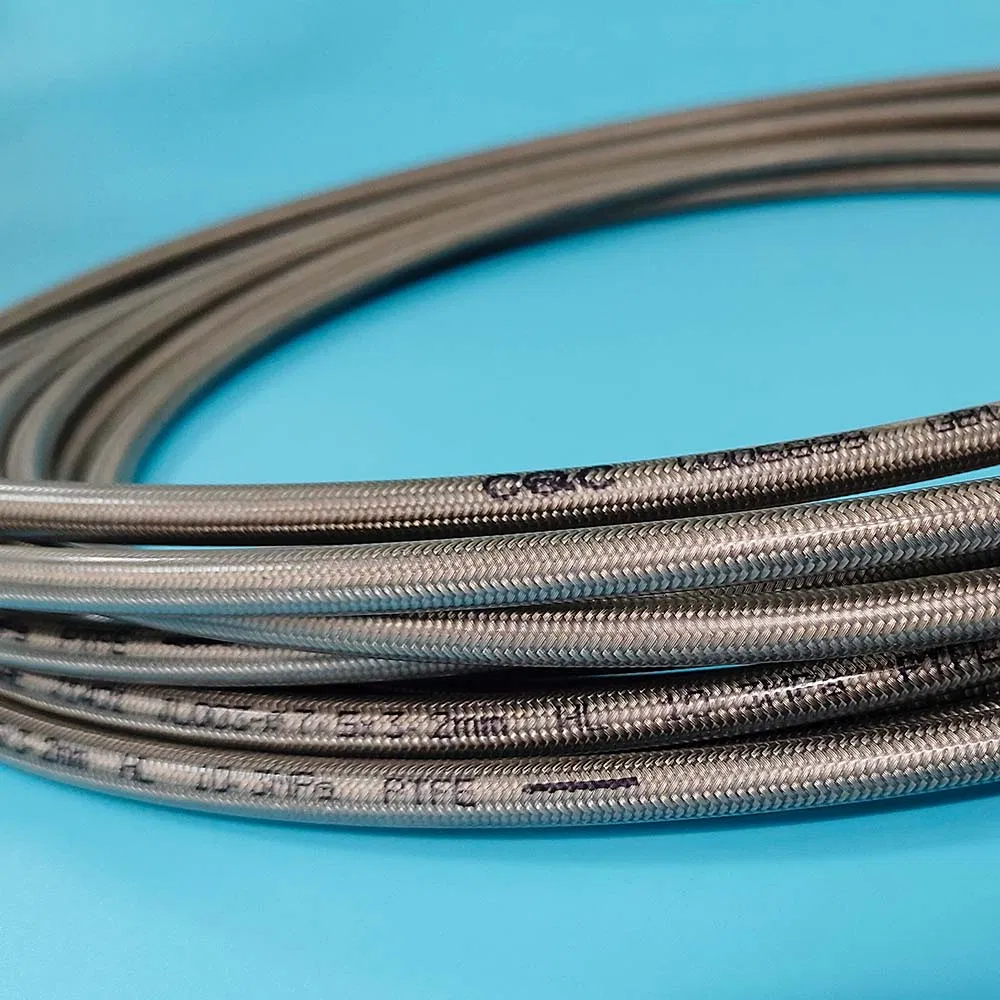

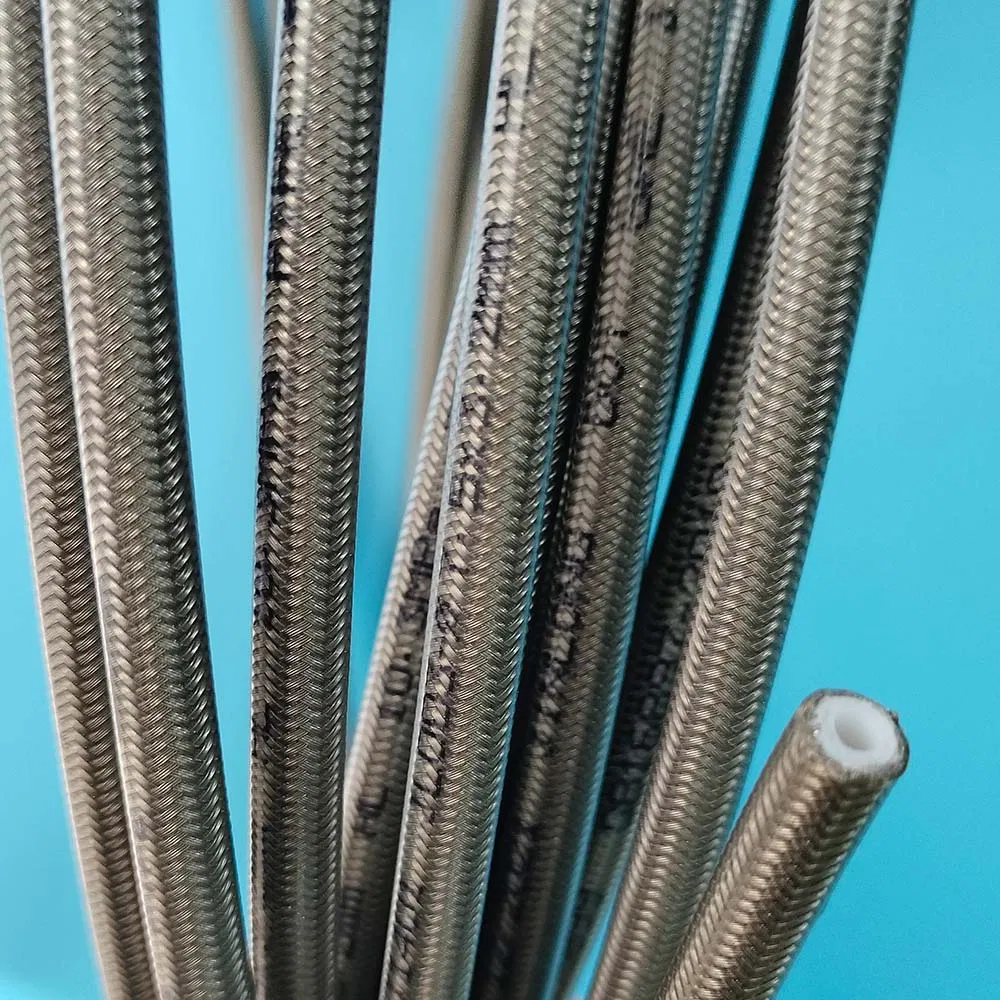

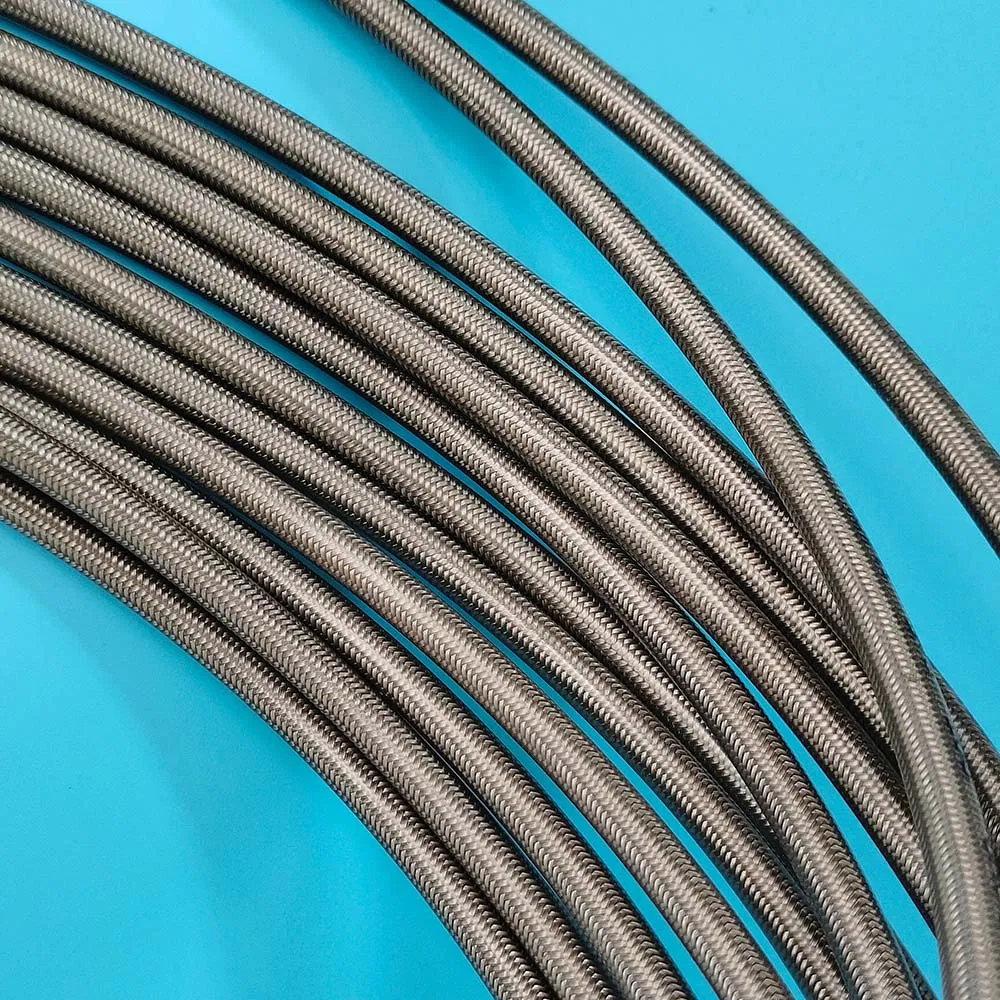

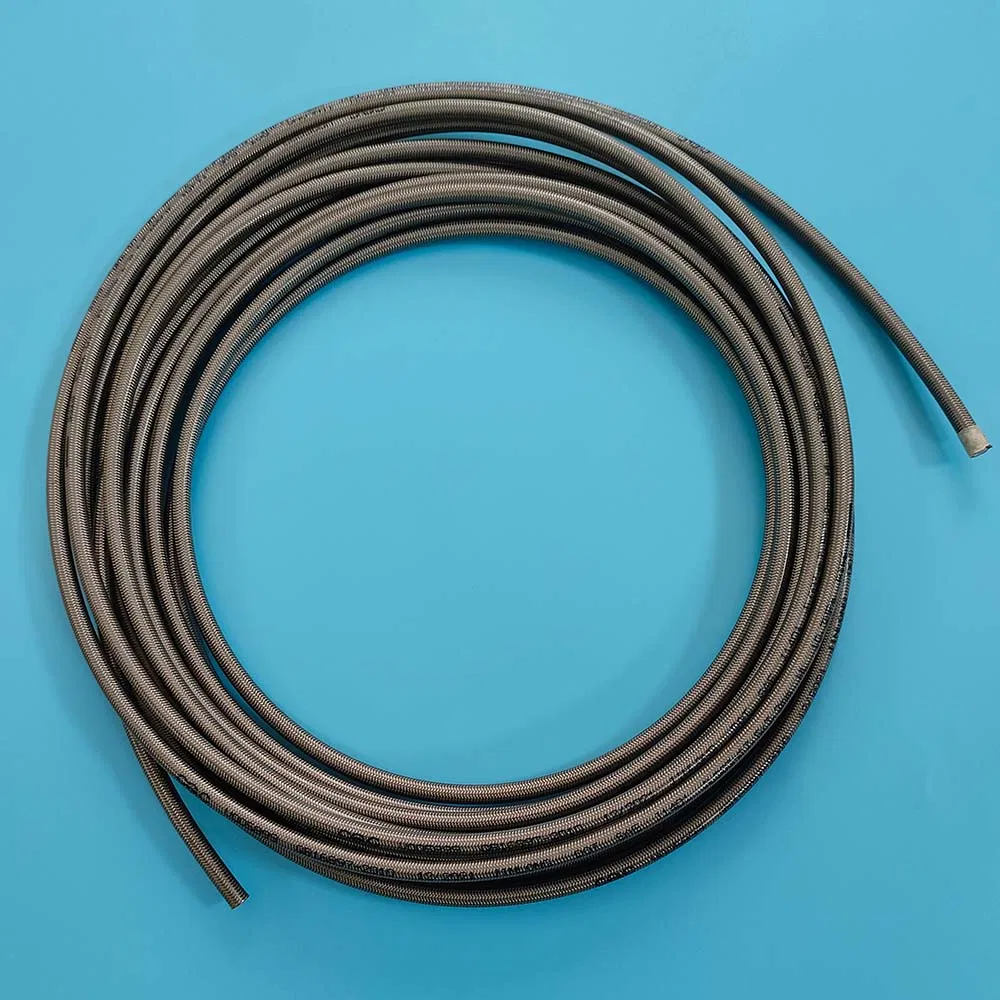

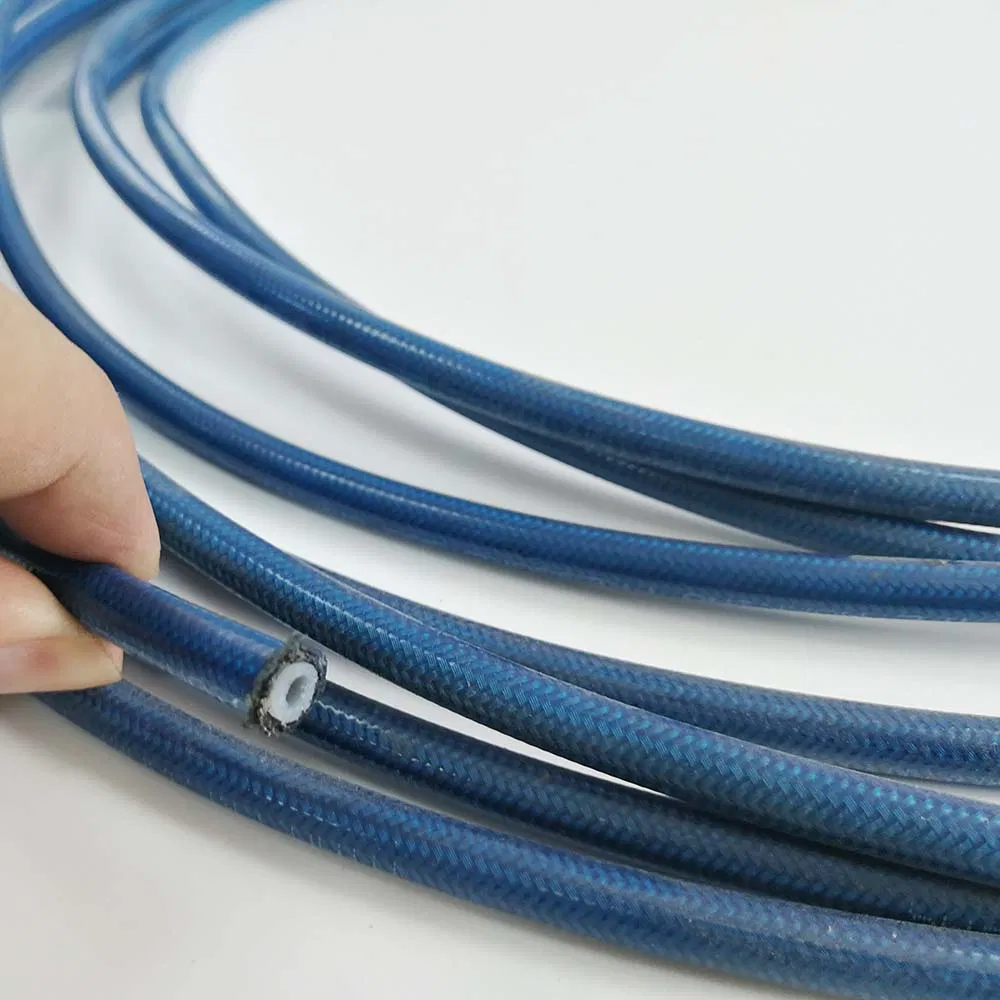

PTFE smooth hose braided with 304 stainless steel, PVC or PU coated.

Smooth ptfe hose core, less resistance and less residue fluid
Size: an3, 1/8'', other available sizes: 3/16'' ~ 1''
Non-stick oil resistance and fuel resistance, Suitable for brake, power steering, and hydraulic applications

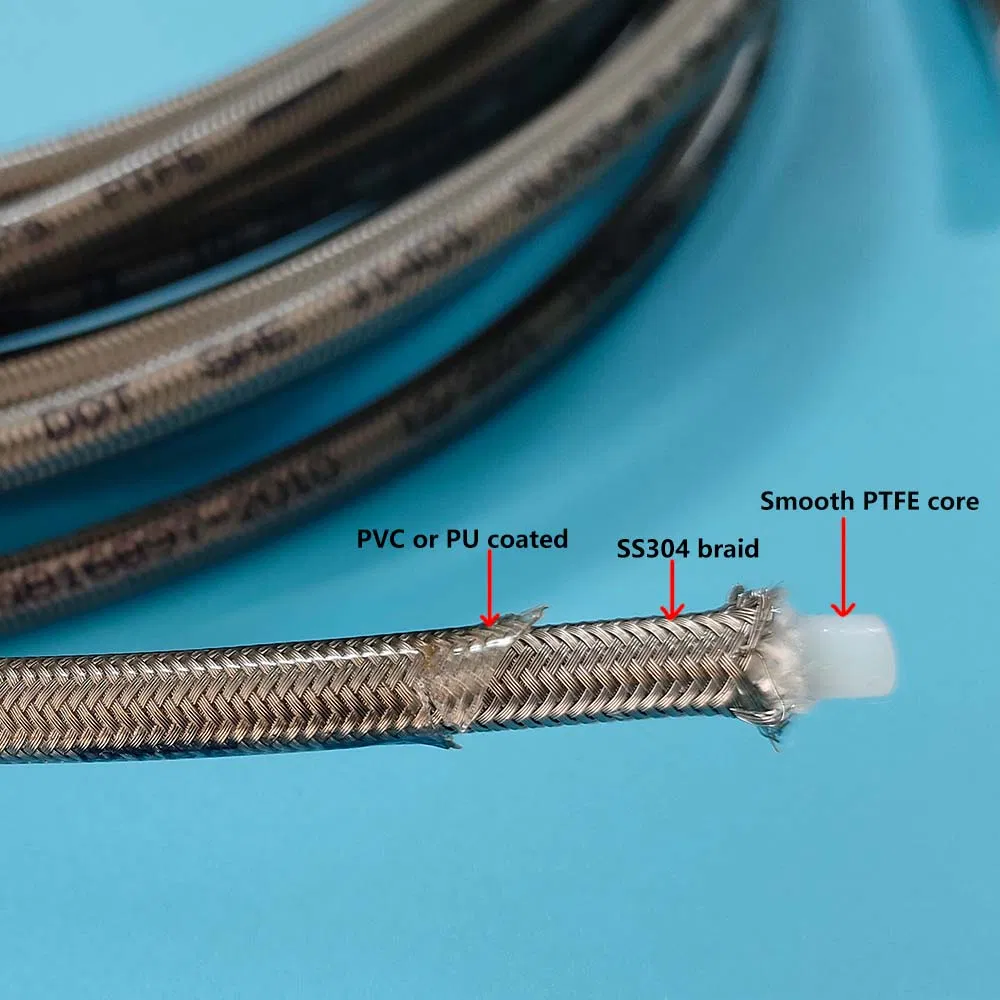

Material: PTFE + 304 stainless steel + PVC or PU coated
Anti both low and high temperature, working temperature: -70 to +260ºC
High pressure resistance, offered in single braid and double braid options
Advantages: less residue liquid, less resistance, non-stick, non-toxic, anti-corrosion

📊

Technical Data

Technical data of PTFE smooth hose braid with 304 stainless steel:

Inner Diameter (inches)	Working Pressure (bar)	Burst Pressure (bar)	Bend Radius (mm)
1/8''	280	840	40
3/16''	227	680	50
1/4''	200	600	75
5/16''	177	530	100
3/8''	153	460	125
13/32''	150	450	135
1/2''	140	420	165
5/8''	117	350	200
3/4''	93	280	230
7/8''	82	245	260
1''	67	200	300

📜

Certifications

🏭

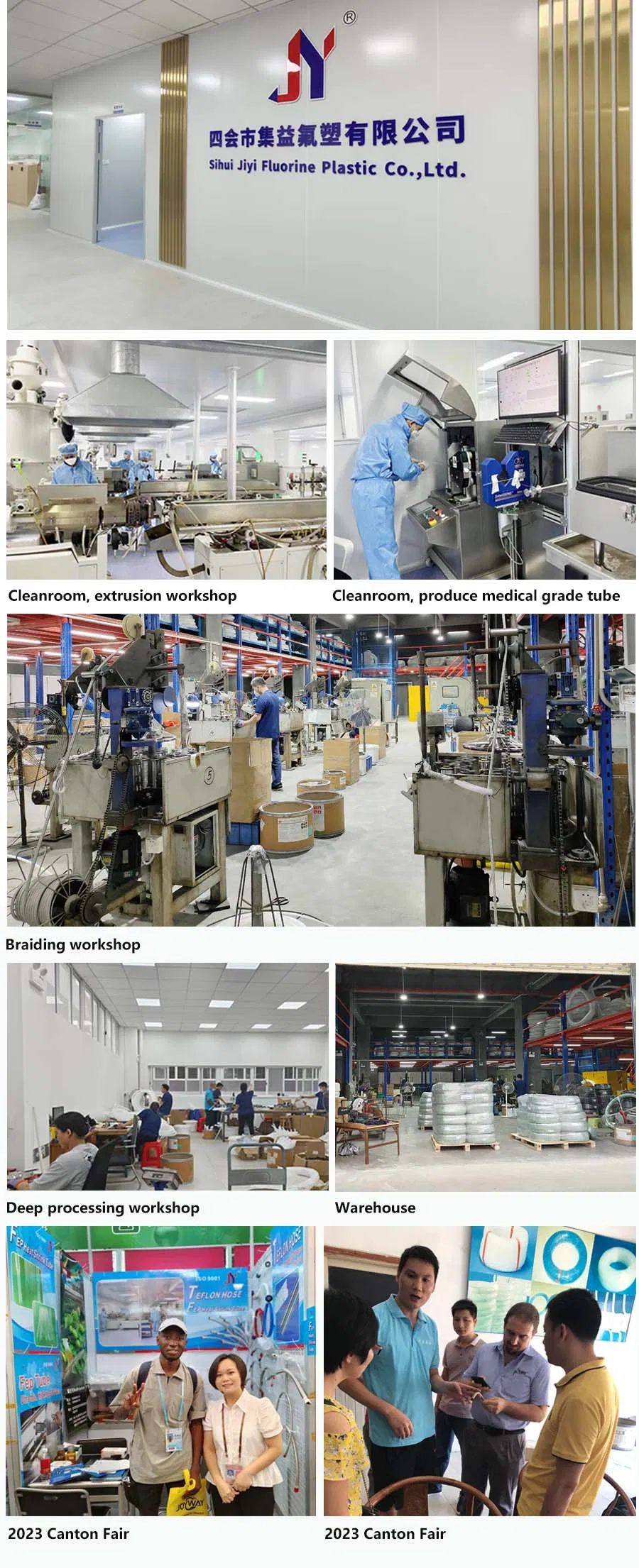

Manufacturing Profile

Established in 2014, our facility operates under ISO 9001 and ISO 13485 quality management systems.

Equipped with 2 specialized cleanrooms dedicated to the production of food and medical grade tubing. We are a professional manufacturer focusing on PTFE, FEP, and PFA hoses.

❓

Frequently Asked Questions

1. What is the working temperature range for this PTFE hose?

The hose is designed to withstand extreme temperatures ranging from -70°C to +260°C.

2. Can this hose be used for automotive brake systems?

Yes, it is specifically suitable for brake lines, power steering, and various hydraulic applications due to its high pressure resistance.

3. What are the key advantages of using a smooth PTFE core?

A smooth core provides less flow resistance, prevents residue buildup, is non-stick, non-toxic, and offers excellent anti-corrosion properties.

4. Is the hose resistant to chemicals and fuel?

Absolutely. PTFE material offers superior resistance to oils, fuels, and a wide range of industrial chemicals.

5. Does the factory have professional certifications?

Yes, the production facility is ISO 9001 and ISO 13485 certified, with dedicated cleanrooms for medical and food-grade products.

6. What sizes are available for the braided hose?

Standard sizes include AN3 and 1/8'', with a full range of other available sizes from 3/16'' up to 1'' inner diameter.
