Material: Synthetic Rubber
Capability: Rubber Hose for Sand and Grit Blasting
Color: Black
Send Inquiry

Product Description

📋 Basic Product Information
Product Name
Super Artery Exceeds ISO18752 DC
Usage
Industrial, Construction Machinery, Vehicle
Weight
0.2~7kg/M
I.D.
25-300mm
Diameter
1/4 Inch to 4 Inch
Temp Range
-40°C to +121°C
Reinforcement
1-4 Layers Steel Wire
Cover
Oil and Weather Resistant Synthetic Rubber
Processing
Moulding, Cutting
Characteristics
Corrosion Resistance, Wear Resistant, Flexible
⚙️ Technical Description

Product Application: Suitable for large-scale long-range machinery such as excavators or demanding environmental use requirements.

  • Inner Layer: Neoprene synthetic rubber, suitable for degradable hydraulic oil.
  • Reinforcement: Four layers of steel wire winding (1/4"-1"), pulse ≥1 million; Six layers (1 1/4"-2"), pulse ≥1 million times.
  • Outer Layer Options: Standard abrasion-resistant; AR (Highly Abrasion); SAR (Super Abrasion UHMWPE).
  • Superior Flexibility: Bending radius reduced by 27% vs ISO18752 and 37% vs SAE standards.
📊 Technical Specifications
Model ISO18752 Standard I.D. (mm) O.D. (mm) W.P. (MPa) Burst (MPa) Min Bending (mm) Weight (kg/m)
SA5993-1/4"-4DC6.315.545180550.428
SA5993-3/8"-4DC10.019.045180700.591
SA5993-1/2"-4DC13.022.2451801400.701
SA5993-3/4"-4DC19.030.5421682001.383
SA5993-1"-4DC25.437.5421682501.928
SA5993-2"-6DC51.070.0421686506.33
🏭 Manufacturing Excellence

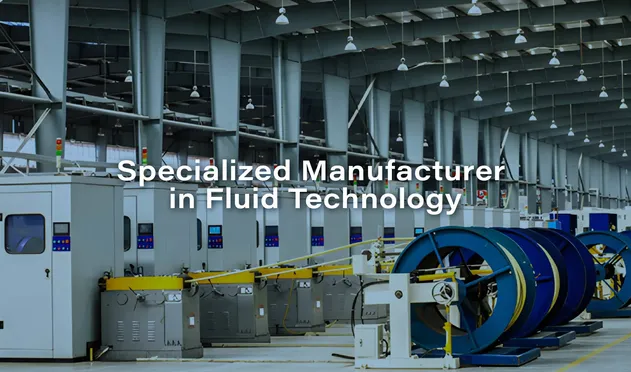

Production Facility

The manufacturing facility operates from a modern 130,000 square meters production base equipped with advanced braiding, spiral winding, and automated compounding lines. With an annual output of 30 million meters of hydraulic and industrial hose, the production system is positioned as a global leader in intelligent hose manufacturing.

Innovation
Fluid Tech

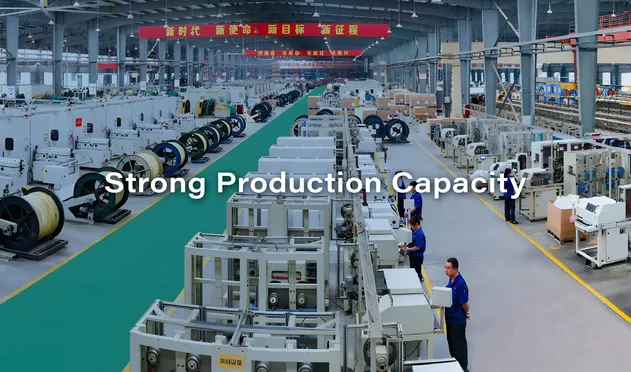

Capacity
📦 Main Product Range

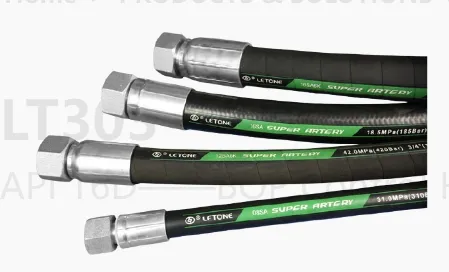

Hydraulic Hose

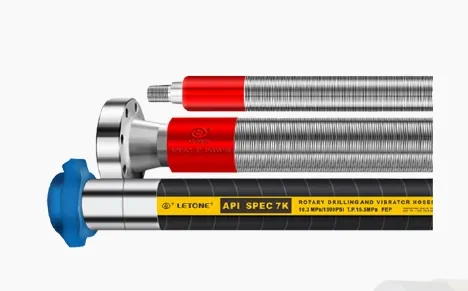

Petroleum Hose
Hydraulic Hoses:
  • Steel Wire Spiral/Braid
  • Fiber Reinforced Rubber
  • Ultra High Pressure Cleaning
Petroleum & Drilling:
  • BOP Control Hose
  • Cementing & Rotary Drilling
  • Choke and Kill Hose
✅ Application & Certification
Application Scenarios

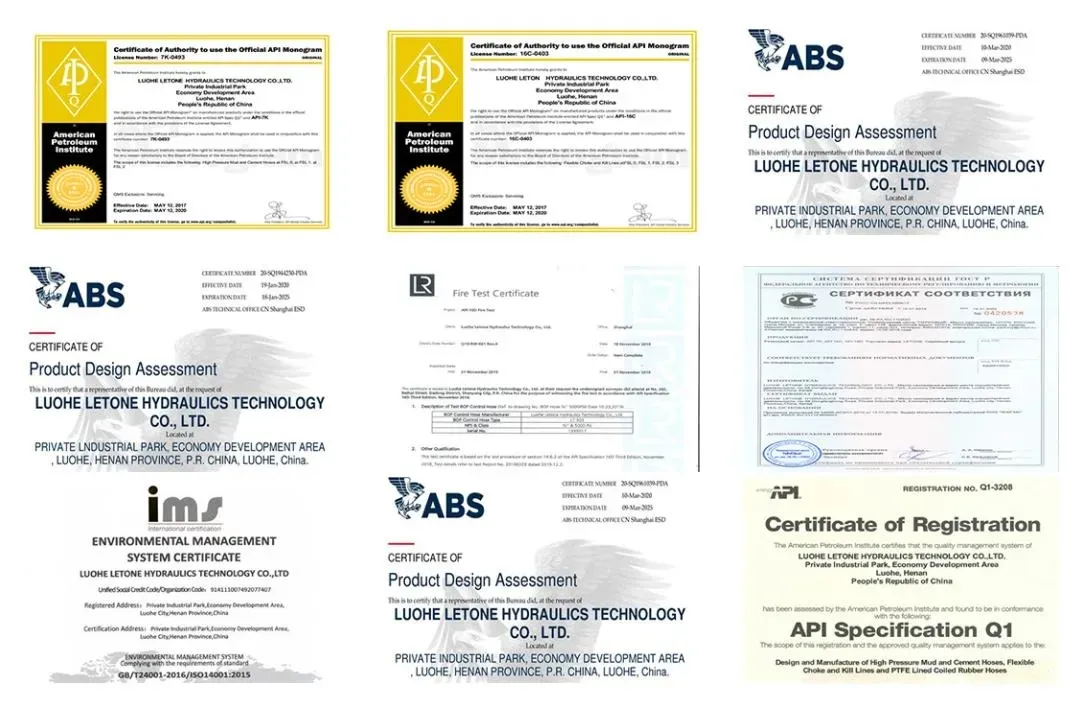

Certifications

Holding major industry certifications including API Type Approvals (16C & 7K), ABS Type Approval, MSHA safety certification, and Lloyd's Fire Test certificate. Integrated management systems are certified to ISO 9001:2015, IATF 16949:2016, and ISO 14001:2015.

🏆 Success Cases

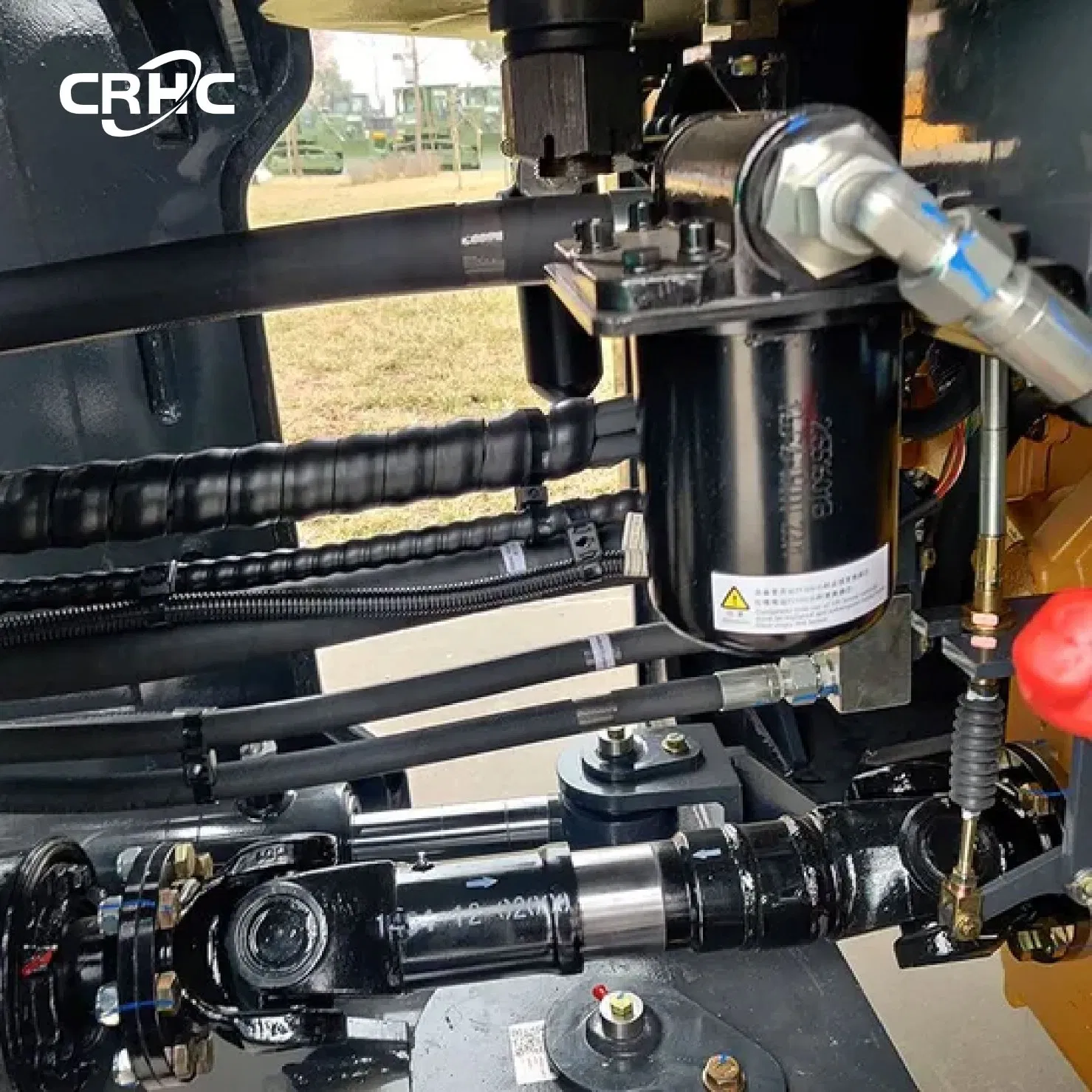

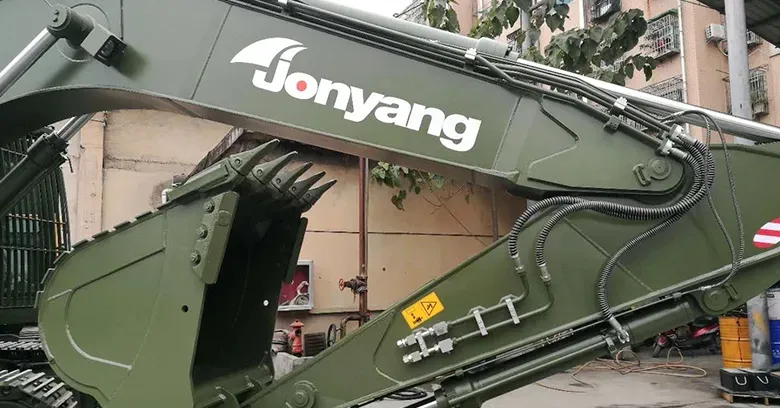

Excavator Application
Premium Hoses for Heavy Machinery:

Withstands pressures 25% above SAE/DIN standards with enhanced durable pulse and abrasion resistance for harsh environments. Expected service life exceeds 5 years.

🚢 Packaging & Shipping

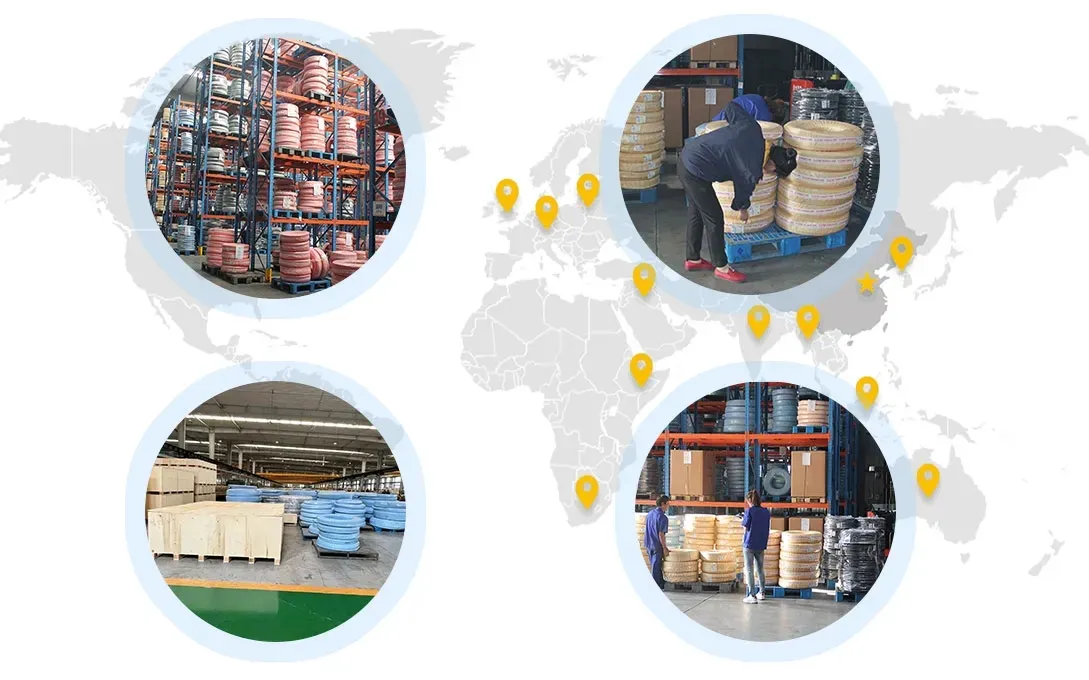

Packaging
Frequently Asked Questions (FAQ)
Q1: What is the temperature range for these hydraulic hoses?
The hoses are designed to operate reliably within a temperature range of -40°C to +121°C (-40°F to +250°F).
Q2: How does the bending radius compare to standard hoses?
The Super Artery series features a significantly reduced bending radius—27% smaller than ISO18752 standards and 37% smaller than SAE standards, allowing for easier installation in tight spaces.
Q3: What type of reinforcement is used in the SA series?
The hoses utilize high-tensile steel wire winding. Typically, 1/4" to 1" sizes use four layers, while 1 1/4" to 2" sizes use six layers to ensure high-pressure resistance.
Q4: Are these hoses resistant to abrasion?
Yes, we offer different cover options including standard, AR (highly abrasion-resistant), and SAR (super abrasion-resistant UHMWPE) to meet various environmental demands.
Q5: What certifications do the products hold?
The products hold API (16C & 7K), ABS Type Approval, MSHA safety certification, and Lloyd's Fire Test certificates, and are manufactured under ISO 9001 and IATF 16949 standards.
Q6: What is the expected service life for heavy machinery applications?
Under normal operating conditions, these premium hydraulic hoses have an expected service life of over 5 years.
