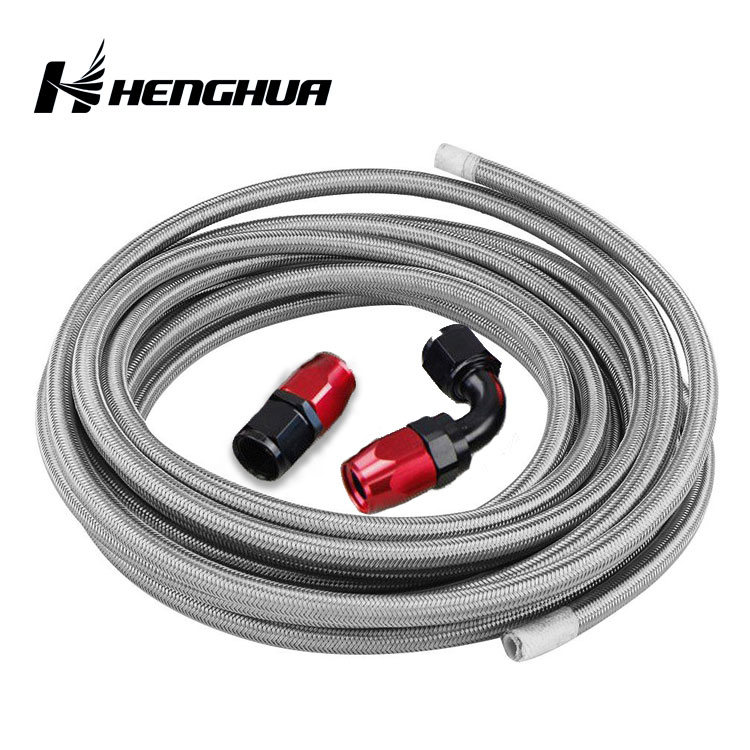

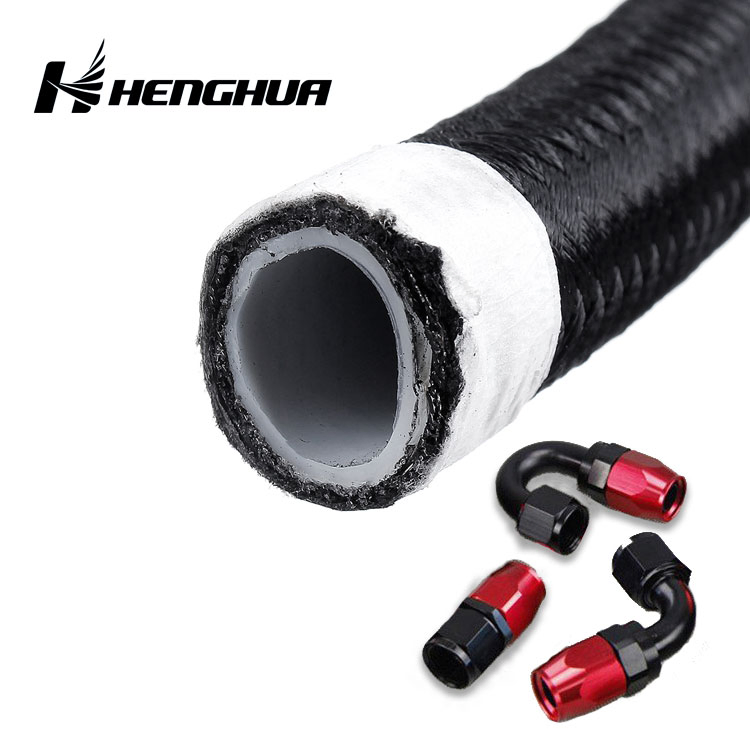

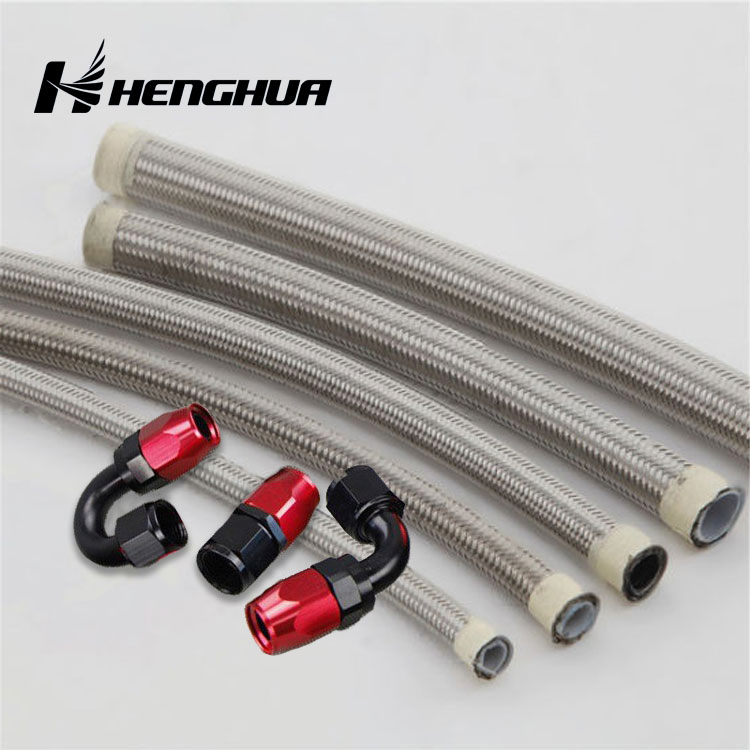

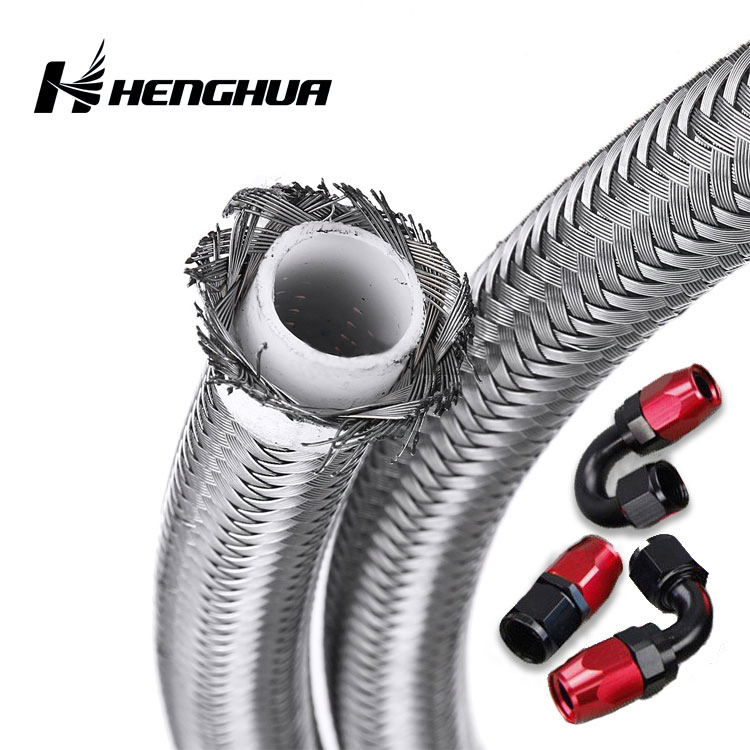

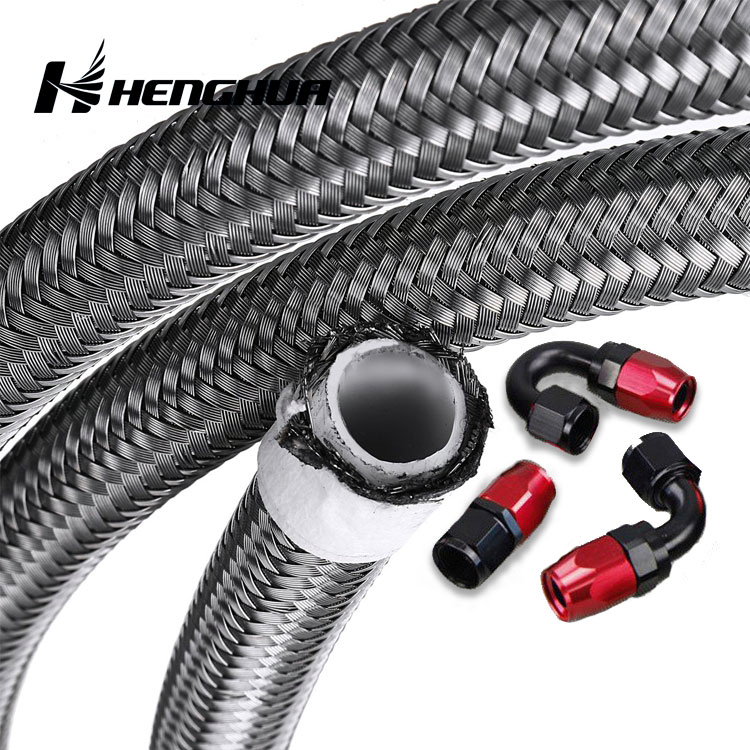

SAE 100r14 Black Nylon Braided Stainless PTFE Fuel Oil Cooler Hose Lines 5/16 Inch 8mm An6 an -6 for Racing Engines

Customization: Available
Material: PTFE Inner Tube+Ss Reinforcement+Ss Cover
Capability: Rubber Air Hose

Product Description

📋 Basic Specifications
Color
Silver, Black
Size
An4 An6 An8 An10 An12 An16
Reinforcement
304 Stainless Steel Wire
Working Pressure
3.45MPa
Certification
CE ISO
Cover
Nylon Braided
Temperature
-65℃ ~ +260℃
Application
Oil Cooler System
HS Code
4009210000
Capacity
1,000,000 Meter Per Month
🔍 Product Overview

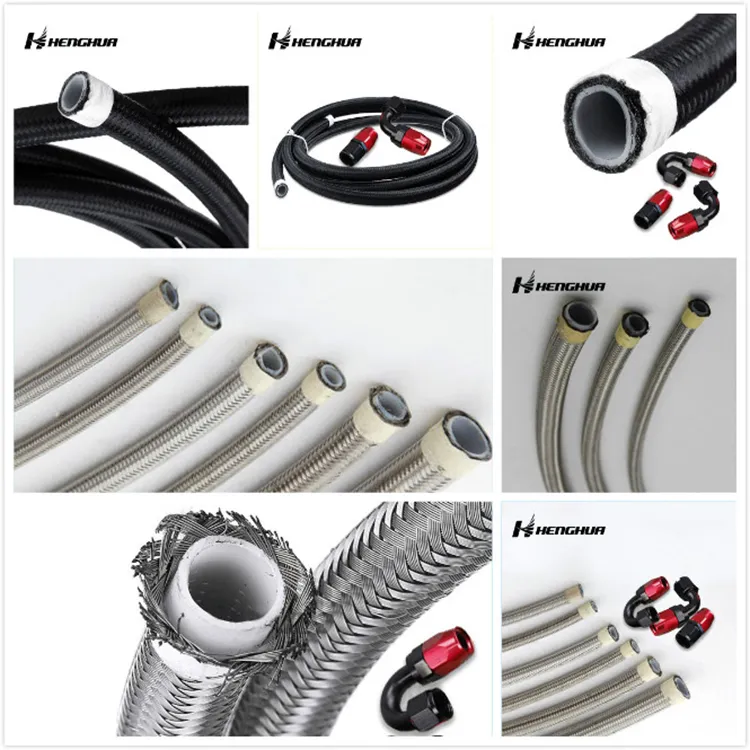

PTFE Fuel Oil Cooler Hose

PTFE brake hose was originally engineered for aircraft hydraulic systems, ensuring maximum reliability under extreme conditions. The inner tube is constructed from high-grade PTFE, capable of withstanding both immense pressure and high thermal loads.

Key Construction Benefits:
  • Inner Core: Pure PTFE for superior chemical and heat resistance.
  • Middle Layer: 304 Stainless steel grid reinforcement to prevent bursting and ensure braking safety.
  • Outer Cover: High-temperature nylon providing excellent hydraulic transmission and protection.

This hose is an essential modification for racing cars and a significant safety upgrade for general road vehicles. It ensures the hydraulic pressure from the master cylinder is fully utilized to propel the piston, providing consistent and stable braking force.

Performance Features

Universal Compatibility: Designed to handle any fuel (including methanol and nitromethane), oil, coolant, brake, transmission, clutch, power steering fluids, and nitrous oxide.

Superior Durability: The PTFE core makes this hose significantly longer-lasting than standard rubber nitrile braided hoses. It offers acid and alkali resistance, ozone resistance, and a low friction coefficient.

Temperature Range: Maintains integrity from -65ºC up to +260ºC.

📊 Technical Specifications
Black Nylon Oil Cooler Rubber Hose
SNI.D (mm)O.D (mm)W.P (MPa)B.P (MPa)Min Bend (mm)Temp Range (℃)
45.5611.173.4513.850.8-40 to 148.9
68.7114.223.4513.863.5-40 to 148.9
811.1317.23.4513.888.9-40 to 148.9
1014.2920.833.4513.8101.6-40 to 148.9
1217.4624.383.4513.8114.3-40 to 148.9
Stainless Steel Wire Braided Hose
SNI.D (mm)O.D (mm)W.P (MPa)B.P (MPa)Min Bend (mm)Temp Range (℃)
45.5611.1374250.8-40 to 148.9
68.7313.8974263.5-40 to 148.9
811.1216.2873588.9-40 to 148.9
1014.2720.24735101.6-40 to 148.9
1217.4723.82726.3114.3-40 to 148.9
1622.2229.365.217.5139.7-40 to 148.9
🖼️ Product Gallery

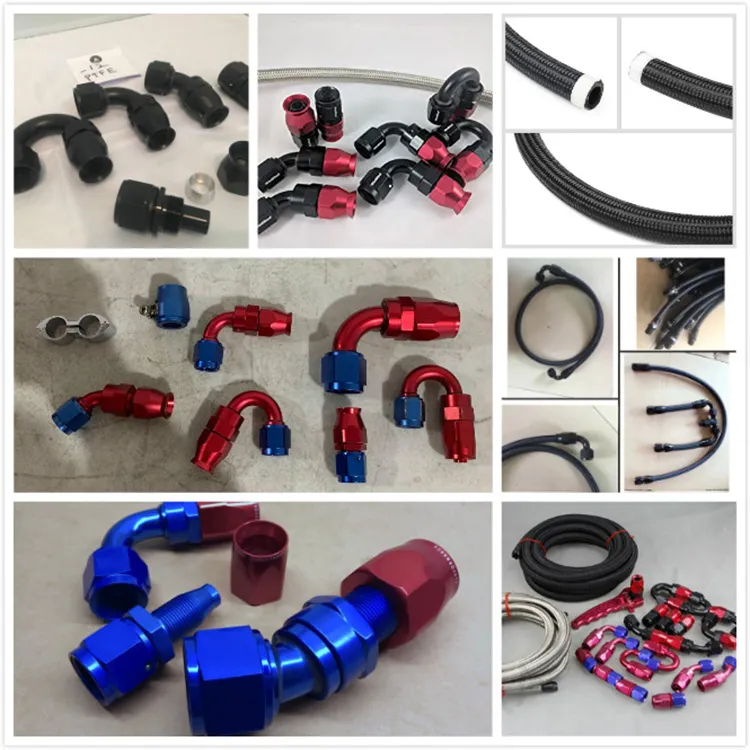

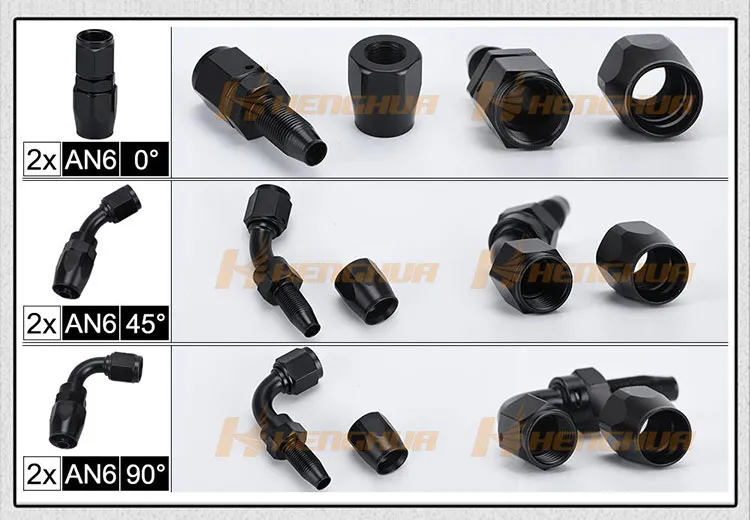

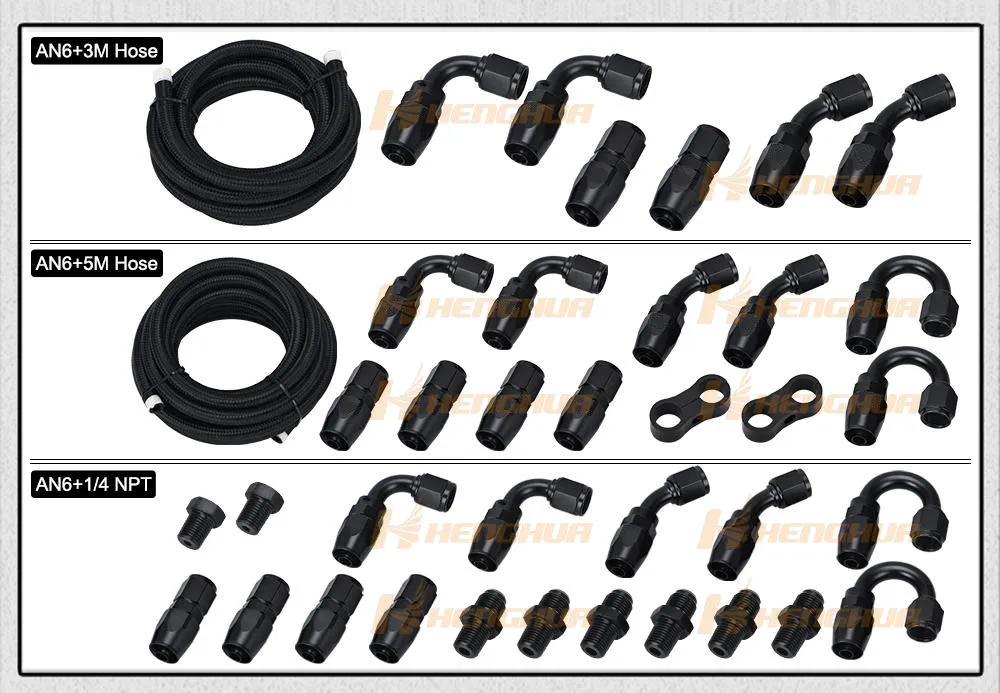

Hose Detail 1 Hose Detail 2 Hose Detail 3

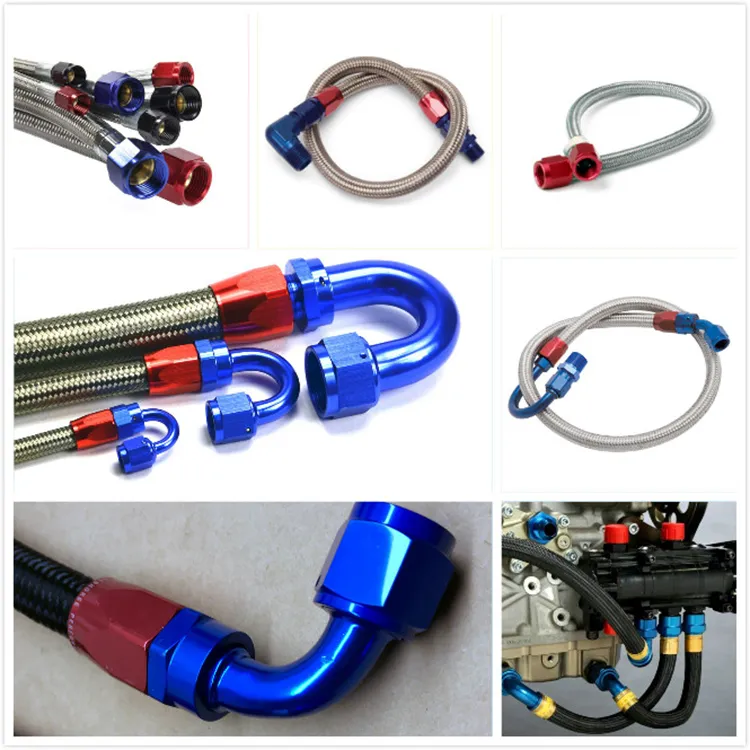

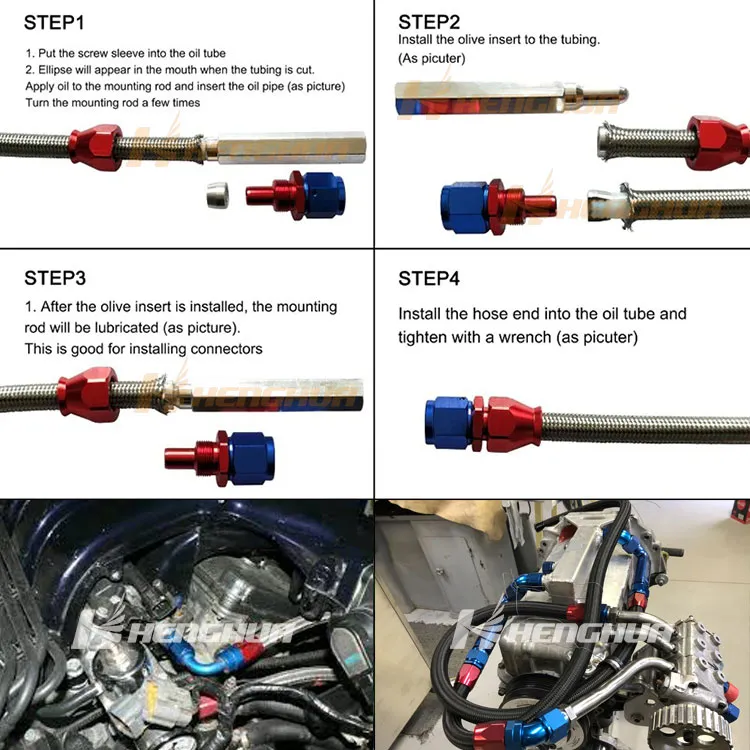

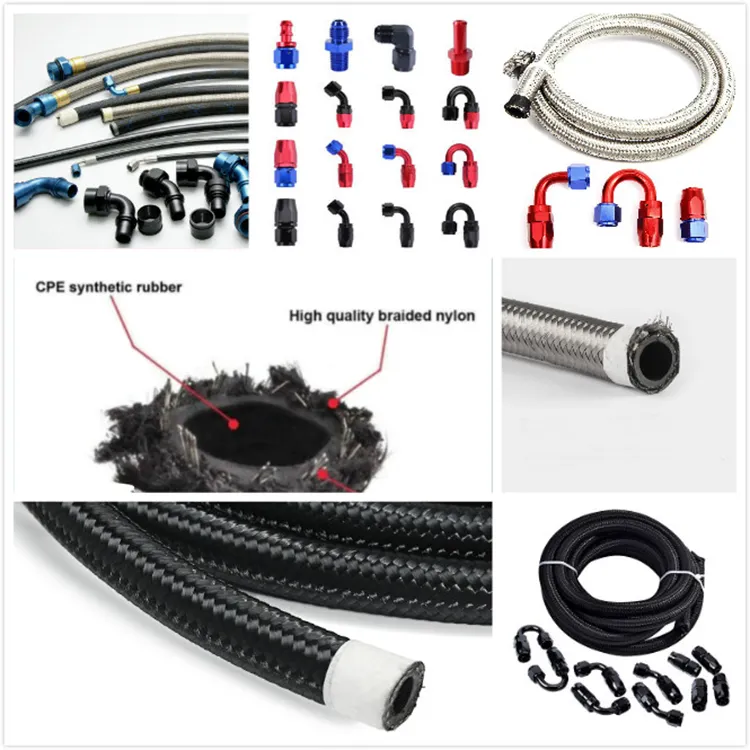

Hose Detail 4 Hose Detail 5 Hose Detail 6
🏭 Industrial & Hydraulic Solutions
Hose TypeReinforcementStandards/Products
Hydraulic Hose One/Two Steel Braided SAE R1AT, R2AT, DIN 1SN/2SN, SAE R5, R17
High Pressure Four Steel Wire Spiral SAE R9AT, R10, R12, DIN 4SP, 4SH
Specialty Nylon/Thermoplastic SAE R7, SAE R8

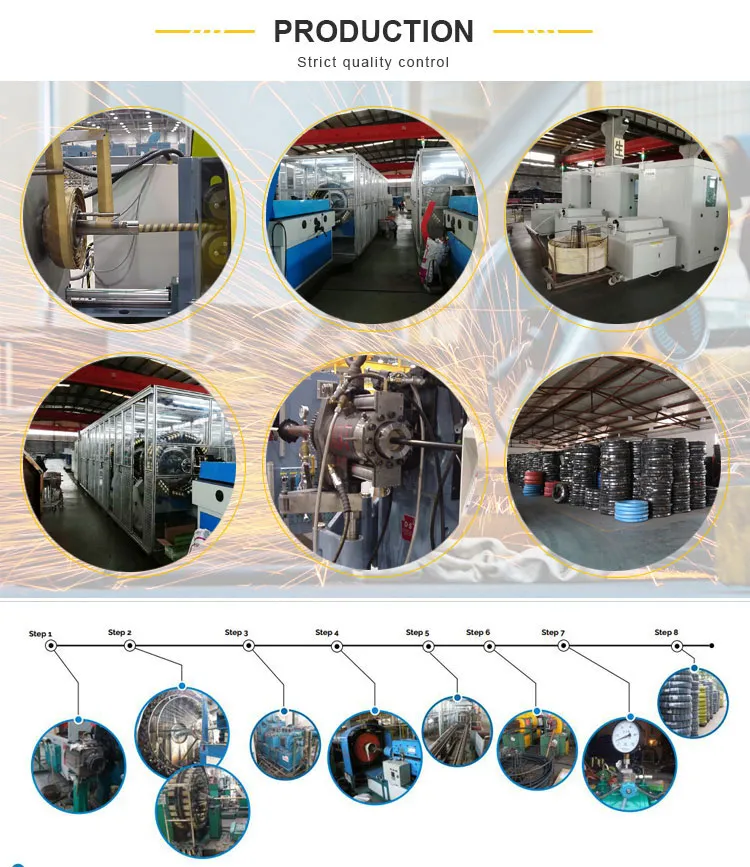

Production Image 1 Production Image 2

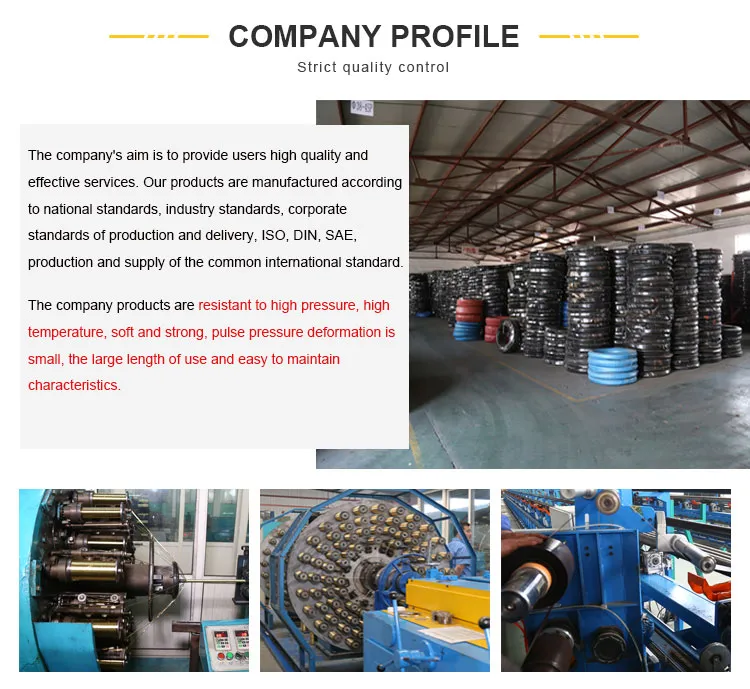

Production Image 3 Production Image 4 Production Image 5
Frequently Asked Questions
1. What are the main benefits of using a PTFE inner tube?
PTFE (Teflon) offers exceptional resistance to high temperatures, chemicals, and pressure. It is non-aging and provides a low-friction surface for optimal fluid flow.
2. Is this hose compatible with racing fuels?
Yes, the hose is designed to handle any fuel including methanol, nitromethane, and standard oils or coolants without degradation.
3. What is the difference between stainless steel and nylon braided covers?
Stainless steel braiding provides maximum protection against physical damage and high pressure, while nylon braiding offers a lightweight, flexible alternative with excellent heat resistance.
4. Can these hoses be used for braking systems?
Absolutely. The low expansion characteristics of the PTFE core and stainless reinforcement ensure a firm and stable braking force suitable for racing and heavy-duty use.
5. What is the operating temperature range?
Our PTFE hoses are rated for performance in extreme conditions ranging from -65ºC to +260ºC.
6. What sizes are available for the oil cooler hoses?
We provide standard AN sizes including AN4, AN6, AN8, AN10, AN12, and AN16 to fit various vehicle and industrial systems.
