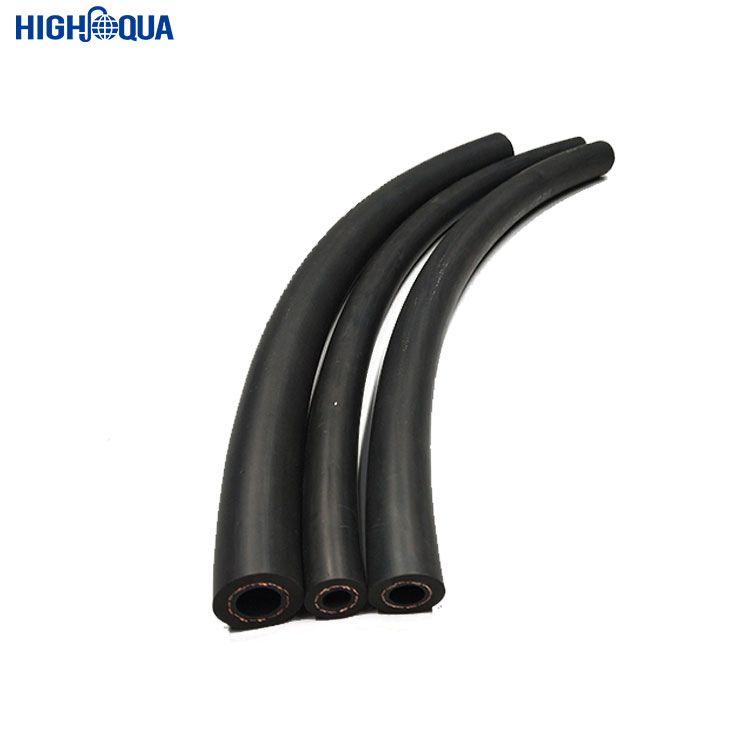

SAE Standard R134A Refrigerant Air Conditioner Hose A/C Hose
SAE Standard R134A Refrigerant Air Conditioner Hose A/C Hose
SAE Standard R134A Refrigerant Air Conditioner Hose A/C Hose
SAE Standard R134A Refrigerant Air Conditioner Hose A/C Hose
SAE Standard R134A Refrigerant Air Conditioner Hose A/C Hose
1 / 5
SAE Standard R134A Refrigerant Air Conditioner Hose A/C Hose
SAE Standard R134A Refrigerant Air Conditioner Hose A/C Hose
SAE Standard R134A Refrigerant Air Conditioner Hose A/C Hose
SAE Standard R134A Refrigerant Air Conditioner Hose A/C Hose
SAE Standard R134A Refrigerant Air Conditioner Hose A/C Hose

SAE Standard R134A Refrigerant Air Conditioner Hose A/C Hose

Customization: Available
Material: Natural Rubber
Capability: Rubber Air Hose
Send Inquiry

Product Description

Basic Info & Specifications

Size:
5/16'', 7/16'', 13/32'', 1/2'', 5/8''
W.P:
35 Bar
B.P:
230 Bar
Reinforcement:
4 or 5 Layers
Surface:
Smooth Surface
Length:
100m
Temperature:
-40~121c Degree
Model:
SAE J2064 Type C Class II and Class I
Package Size:
1.00cm * 1.00cm * 1.00cm
Gross Weight:
1.000kg
Specification:
ISO 2398; BS2050, SAE J2064-2005
Capacity:
100000m/Month

Product Description

Type C A/C Hose Rubber Air Condition Hose

SAE Standard R134A Refrigerant Air Conditioner Hose

🔹 Construction (Type C/Type E A/C Hose):

  • First layer: EPDM/IIM
  • Barrier: PA
  • Middle layer: EPDM/CSM
  • Reinforcement: PET/PVA (Braided)
  • Cover: EPDM (Smooth/Cloth wrapped)

Constant operation: -30ºC - +150ºC

Application: Specially designed for the transportation of R12, R502, R134A medium. Widely used in vehicle air conditioning and the industrial freezing device sector.

Available Colors: Red, yellow, blue.

Temperature Range: -40° C to 125° C

Technical Parameters

I.D. O.D. W.P. REIFORCE LAYER WEIGHT (kg/m) UNIT LENGTH (m/roll)
in. mm in. mm psi. mpa.
3/164.80.4511.53002.0710.15100
1/46.40.63163002.0710.18100
5/167.90.5915.03002.0710.22100
3/89.50.7519.13002.0710.27100
1/212.70.9123.13002.0710.40100
5/815.90.9624.53002.0710.50100
3/419.11.1429.03002.0710.75100
125.41.4236.13002.0710.95100
1 1/431.81.7544.53002.0720.7050
1 1/238.1254.03002.0720.8550

Product Showcase

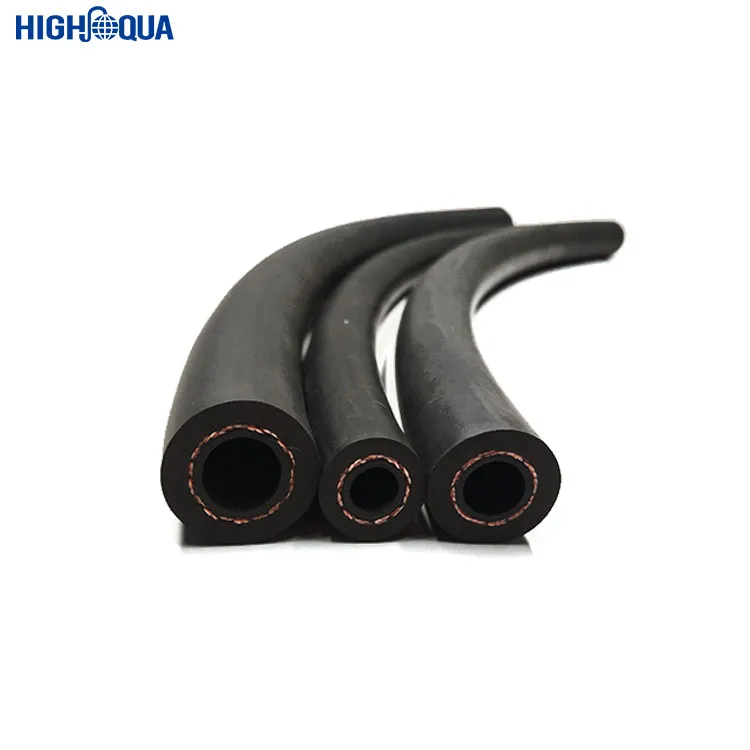

A/C Hose Detail

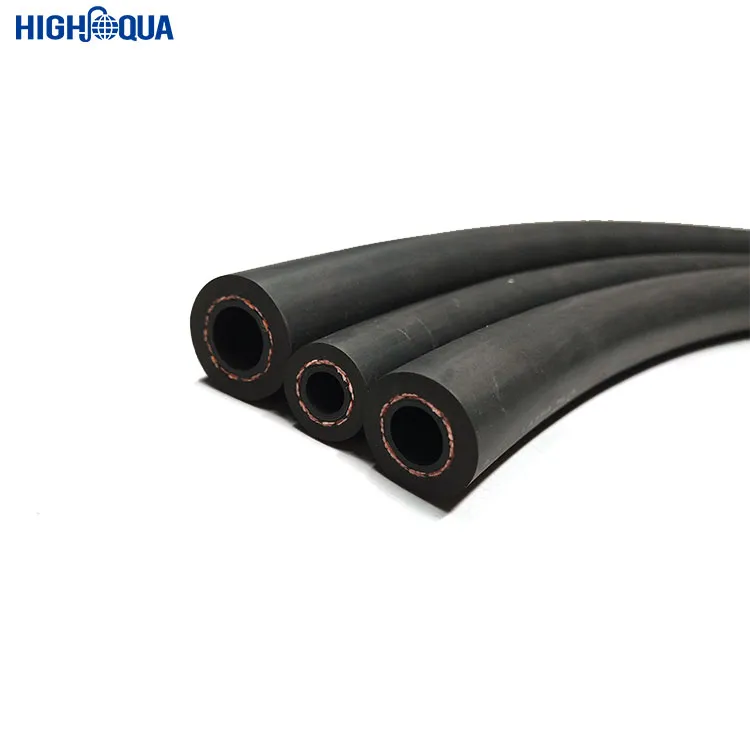

A/C Hose Structure
Refrigerant Hose Display
A/C Hose Application

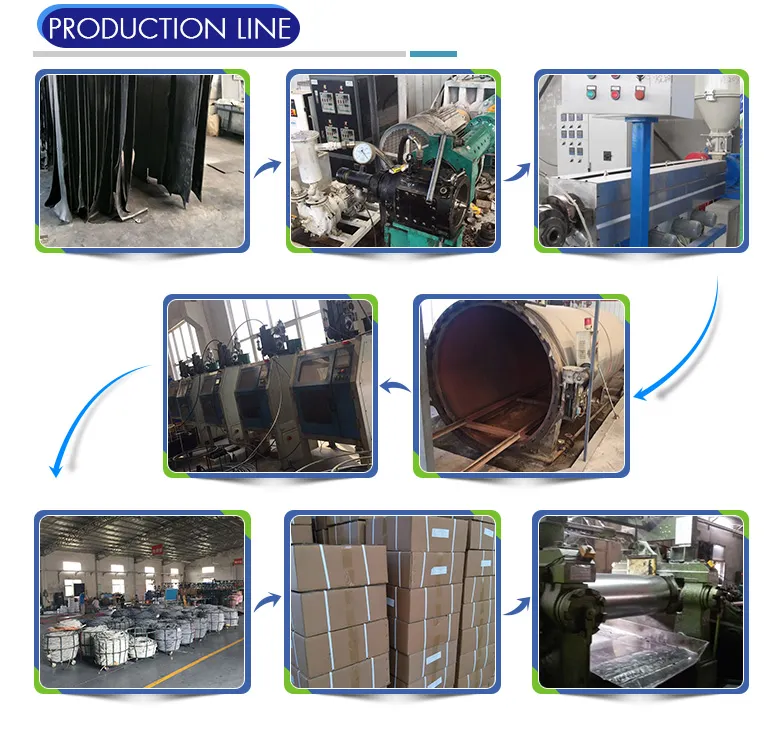

Hose Manufacturing
SAE J2064 Standard Hose

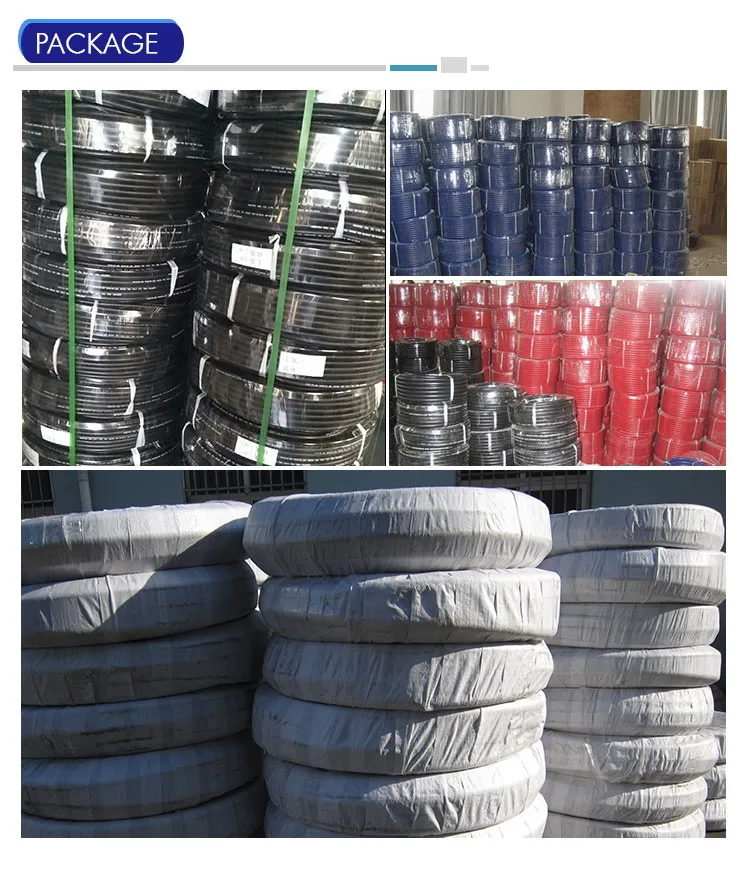

Hose Coil Packaging
Multi-color A/C Hose
Industrial A/C Hose
A/C Hose Connection

Frequently Asked Questions

What materials are used in the construction of the Type C A/C hose?
The hose features a multi-layer design including an EPDM/IIM inner layer, a PA barrier, an EPDM/CSM middle layer, PET/PVA braided reinforcement, and a smooth or cloth-wrapped EPDM cover.
What is the temperature range this hose can withstand?
The hose is designed for constant operation between -30ºC and +150ºC, with a general temperature resistance ranging from -40° C to 125° C.
Which refrigerants is this hose compatible with?
It is specifically designed for the transportation of R12, R502, and R134A mediums, making it ideal for vehicle air conditioning and industrial freezing devices.
What are the available sizes and pressure ratings?
Available sizes range from 3/16'' to 1 1/2''. It features a Working Pressure (W.P.) of 300 psi (2.07 mpa) to 35 Bar and a Burst Pressure (B.P.) up to 230 Bar.
Does the product meet international standards?
Yes, the hose complies with several international specifications including SAE J2064 Type C (Class I and II), ISO 2398, and BS2050.
What colors and surface types are available?
The hose comes in Red, Yellow, and Blue. The surface finish can be either smooth or cloth-wrapped depending on your requirements.
